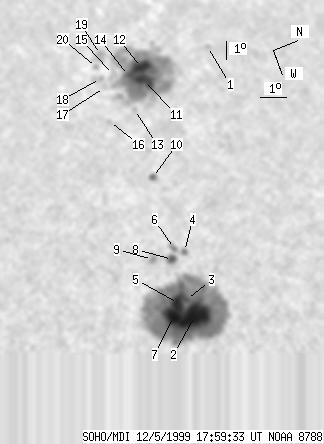

SOHO MDI 1999-12-05 17:59:33 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 167 | 1196 | 118 | 864 | 10.25 | 308.58 | -45.45 | 75.84 | 0.7200 | 611.4 | 59.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 1999-12-05 17:59:33 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 3 | 13.96 | 300.67 | -53.36 | 72.97 | 0.8166 | -188.0 | -141.0 | |
| 61 | 649 | 39 | 417 | 9.76 | 315.60 | -38.42 | 74.84 | 0.6369 | 1821.7 | 587.1 | |
| 4 | -2 | 3 | -2 | 9.70 | 314.67 | -39.35 | 75.21 | 0.6488 | 670.0 | 999999 | |
| 2 | 8 | 2 | 6 | 10.29 | 312.25 | -41.78 | 75.04 | 0.6810 | 533.7 | 474.2 | |
| 21 | -2 | 13 | -2 | 9.36 | 314.77 | -39.26 | 75.71 | 0.6467 | 1095.7 | 999999 | |
| 1 | 9 | 1 | 6 | 9.97 | 311.96 | -42.06 | 75.58 | 0.6837 | 508.4 | 405.7 | |
| 23 | -2 | 15 | -2 | 9.00 | 315.33 | -38.70 | 76.10 | 0.6385 | 1653.7 | 999999 | |
| 7 | 14 | 5 | 9 | 9.74 | 312.50 | -41.53 | 75.76 | 0.6765 | 838.5 | 648.1 | |
| 0 | 8 | 0 | 5 | 9.02 | 312.24 | -41.79 | 76.89 | 0.6782 | 938.0 | 767.0 | |
| 3 | 7 | 2 | 5 | 10.14 | 307.90 | -46.12 | 76.31 | 0.7327 | 277.5 | 226.9 | |
| 18 | 444 | 15 | 367 | 11.18 | 302.10 | -51.93 | 76.10 | 0.7979 | -1273.2 | -470.6 | |
| 21 | -11 | 18 | -11 | 11.25 | 301.23 | -52.80 | 76.17 | 0.8068 | -801.3 | 999999 | |
| 0 | 4 | 0 | 3 | 10.42 | 303.75 | -50.28 | 76.77 | 0.7795 | -688.0 | -670.2 | |
| 6 | -11 | 5 | -11 | 10.67 | 301.56 | -52.47 | 76.84 | 0.8026 | -983.5 | 999999 | |
| 0 | 9 | 0 | 8 | 10.13 | 301.29 | -52.74 | 77.54 | 0.8047 | -675.0 | -622.4 | |
| 0 | 5 | 0 | 4 | 9.34 | 304.11 | -49.92 | 78.08 | 0.7739 | -592.0 | -534.7 | |
| 0 | 5 | 0 | 4 | 9.63 | 301.97 | -52.05 | 78.06 | 0.7970 | -508.0 | -537.4 | |
| 0 | 12 | 0 | 10 | 9.61 | 301.35 | -52.68 | 78.18 | 0.8034 | -652.0 | -458.3 | |
| 0 | 15 | 0 | 13 | 9.93 | 299.80 | -54.23 | 78.00 | 0.8193 | 360.0 | 98.2 | |
| 0 | 4 | 0 | 4 | 9.61 | 300.59 | -53.44 | 78.29 | 0.8111 | -344.0 | -339.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
