SOHO MDI 1999-12-05 20:59:33 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 200 | 1211 | 139 | 843 | 10.23 | 308.98 | -43.40 | 75.36 | 0.6959 | 528.8 | 86.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 1999-12-05 20:59:33 UT |

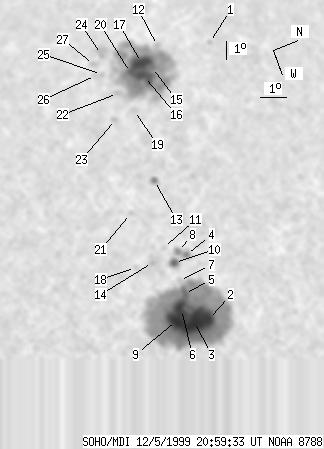

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | 14.03 | 300.73 | -51.65 | 72.51 | 0.8001 | -253.0 | -166.3 | |
| 21 | 673 | 13 | 423 | 10.16 | 315.73 | -36.65 | 73.60 | 0.6148 | 1537.5 | 586.1 | |
| 49 | -2 | 31 | -2 | 9.62 | 315.65 | -36.73 | 74.48 | 0.6143 | 1959.2 | 999999 | |
| 3 | 19 | 2 | 12 | 10.25 | 312.31 | -40.07 | 74.58 | 0.6595 | 699.9 | 479.6 | |
| 10 | -2 | 6 | -2 | 9.65 | 314.19 | -38.19 | 74.93 | 0.6336 | 489.9 | 999999 | |
| 18 | -2 | 12 | -2 | 9.32 | 314.92 | -37.47 | 75.21 | 0.6232 | 1225.4 | 999999 | |
| 0 | 3 | 0 | 2 | 9.64 | 313.50 | -38.88 | 75.15 | 0.6426 | 374.0 | 343.7 | |
| 3 | -4 | 2 | -4 | 9.97 | 312.04 | -40.34 | 75.09 | 0.6621 | 623.3 | 999999 | |
| 26 | -2 | 17 | -2 | 8.98 | 315.37 | -37.01 | 75.60 | 0.6162 | 1695.1 | 999999 | |
| 6 | 14 | 4 | 9 | 9.71 | 312.55 | -39.83 | 75.33 | 0.6550 | 919.7 | 593.4 | |
| 0 | 4 | 0 | 3 | 9.51 | 311.66 | -40.72 | 75.86 | 0.6658 | 284.0 | 333.1 | |
| 0 | 5 | 0 | 4 | 12.07 | 300.30 | -52.08 | 75.01 | 0.8009 | 182.0 | 120.4 | |
| 3 | 8 | 2 | 6 | 10.11 | 308.09 | -44.29 | 75.92 | 0.7111 | 388.8 | 246.5 | |
| 0 | 4 | 0 | 3 | 8.91 | 312.26 | -40.12 | 76.61 | 0.6567 | 839.0 | 755.6 | |
| 2 | 423 | 2 | 337 | 11.59 | 301.61 | -50.77 | 75.36 | 0.7866 | -810.8 | -498.0 | |
| 25 | -15 | 20 | -15 | 11.17 | 302.06 | -50.32 | 75.80 | 0.7812 | -1265.7 | 999999 | |
| 27 | -15 | 22 | -15 | 11.25 | 301.16 | -51.22 | 75.87 | 0.7907 | -851.0 | 999999 | |
| 0 | 3 | 0 | 2 | 8.23 | 312.28 | -40.10 | 77.63 | 0.6550 | 567.0 | 517.8 | |
| 0 | 7 | 0 | 5 | 10.34 | 303.94 | -48.44 | 76.51 | 0.7594 | -535.0 | -518.2 | |
| 7 | -15 | 6 | -15 | 10.72 | 301.63 | -50.75 | 76.46 | 0.7850 | -1135.8 | 999999 | |
| 0 | 4 | 0 | 3 | 8.78 | 309.50 | -42.88 | 77.46 | 0.6913 | 651.0 | 572.4 | |
| 0 | 7 | 0 | 5 | 9.95 | 302.71 | -49.67 | 77.24 | 0.7722 | -897.0 | -857.1 | |
| 0 | 5 | 0 | 4 | 9.53 | 304.20 | -48.18 | 77.52 | 0.7552 | -743.0 | -619.8 | |
| 0 | 15 | 0 | 12 | 9.91 | 300.11 | -52.27 | 77.73 | 0.7996 | 40.0 | 150.7 | |
| 0 | 3 | 0 | 2 | 9.63 | 301.34 | -51.04 | 77.88 | 0.7864 | -703.0 | -656.6 | |
| 0 | 5 | 0 | 4 | 9.40 | 301.32 | -51.06 | 78.18 | 0.7864 | -360.0 | -382.4 | |
| 0 | 6 | 0 | 5 | 9.48 | 300.61 | -51.77 | 78.19 | 0.7938 | -354.0 | -310.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
