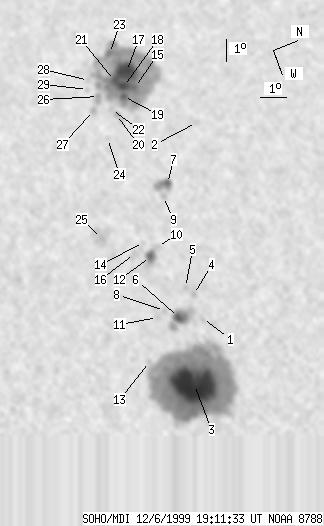

SOHO MDI 1999-12-06 19:11:33 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 218 | 1461 | 128 | 859 | 10.15 | 309.80 | -30.40 | 70.19 | 0.5266 | 651.8 | 147.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 1999-12-06 19:11:33 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 3 | 10.72 | 313.33 | -26.87 | 67.50 | 0.4827 | 578.0 | 568.8 | |
| 0 | 4 | 0 | 2 | 13.23 | 304.50 | -35.70 | 68.22 | 0.6140 | -672.0 | -640.1 | |
| 127 | 772 | 70 | 425 | 9.52 | 315.97 | -24.23 | 68.04 | 0.4383 | 2119.2 | 677.0 | |
| 0 | 5 | 0 | 3 | 10.72 | 312.20 | -28.00 | 68.24 | 0.4986 | -582.0 | -442.3 | |
| 0 | 3 | 0 | 2 | 10.53 | 311.81 | -28.39 | 68.86 | 0.5033 | 494.0 | 293.6 | |
| 7 | 48 | 4 | 27 | 9.86 | 312.99 | -27.20 | 69.41 | 0.4832 | 1143.3 | 525.8 | |
| 6 | 28 | 3 | 17 | 11.32 | 307.01 | -33.19 | 70.10 | 0.5731 | -849.3 | -671.1 | |
| 0 | 4 | 0 | 3 | 9.45 | 312.52 | -27.67 | 70.51 | 0.4880 | 481.0 | 557.3 | |
| 0 | 8 | 0 | 5 | 10.99 | 307.55 | -32.65 | 70.39 | 0.5644 | -668.0 | -712.8 | |
| 0 | 8 | 0 | 5 | 10.08 | 309.69 | -30.50 | 70.90 | 0.5310 | 368.0 | 354.1 | |
| 0 | 5 | 0 | 3 | 9.10 | 312.73 | -27.47 | 71.08 | 0.4835 | 844.0 | 734.0 | |
| 8 | 19 | 5 | 11 | 9.69 | 310.04 | -30.16 | 71.44 | 0.5245 | 933.5 | 670.0 | |
| 0 | 3 | 0 | 1 | 8.20 | 314.46 | -25.74 | 71.88 | 0.4542 | 690.0 | 560.3 | |
| 0 | 2 | 0 | 1 | 9.63 | 309.34 | -30.85 | 71.90 | 0.5341 | 572.0 | 543.8 | |
| 6 | 457 | 4 | 296 | 11.44 | 302.10 | -38.09 | 71.99 | 0.6382 | -1262.5 | -573.8 | |
| 0 | 9 | 0 | 5 | 9.15 | 309.71 | -30.49 | 72.59 | 0.5271 | 523.0 | 575.5 | |
| 36 | -15 | 24 | -15 | 11.37 | 301.22 | -38.97 | 72.41 | 0.6492 | -1199.5 | 999999 | |
| 11 | -15 | 7 | -15 | 11.06 | 301.92 | -38.27 | 72.64 | 0.6393 | -1698.9 | 999999 | |
| 4 | -15 | 3 | -15 | 10.92 | 302.41 | -37.79 | 72.68 | 0.6326 | -1617.9 | 999999 | |
| 0 | 10 | 0 | 6 | 10.41 | 303.18 | -37.01 | 73.18 | 0.6209 | -862.0 | -598.4 | |
| 8 | -15 | 5 | -15 | 10.81 | 301.52 | -38.68 | 73.16 | 0.6437 | -1347.9 | 999999 | |
| 0 | 4 | 0 | 3 | 10.30 | 302.88 | -37.31 | 73.47 | 0.6244 | -830.0 | -773.5 | |
| 5 | -15 | 3 | -15 | 11.00 | 300.13 | -40.07 | 73.34 | 0.6620 | 159.8 | 999999 | |
| 0 | 3 | 0 | 2 | 9.76 | 304.20 | -35.99 | 73.86 | 0.6053 | -938.0 | -884.9 | |
| 0 | 43 | 0 | 25 | 8.16 | 308.64 | -31.56 | 74.88 | 0.5389 | 857.0 | 646.8 | |
| 0 | 11 | 0 | 7 | 10.01 | 302.10 | -38.10 | 74.19 | 0.6338 | -1147.0 | -916.8 | |
| 0 | 4 | 0 | 3 | 9.63 | 302.71 | -37.49 | 74.58 | 0.6248 | -915.0 | -852.6 | |
| 0 | 3 | 0 | 2 | 9.87 | 301.20 | -39.00 | 74.70 | 0.6452 | -565.0 | -584.5 | |
| 0 | 4 | 0 | 2 | 9.71 | 301.62 | -38.58 | 74.82 | 0.6392 | -611.0 | -481.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
