group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
8788	266	1630	138	854	10.05	310.42	-14.86	51.92	0.3115	753.1	195.6

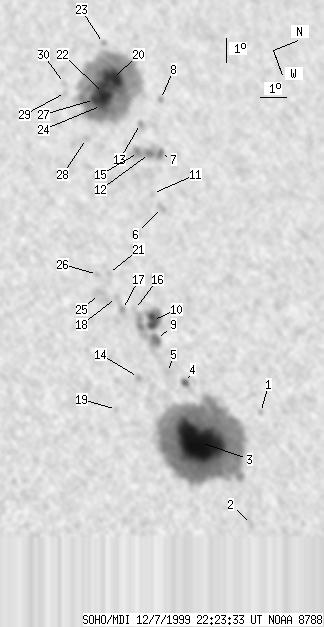

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 1999-12-07 22:23:33 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	4	0	2	12.12	316.03	-9.24	36.77	0.2635	-688.0	-456.5
2	0	9	0	4	10.23	320.06	-5.21	26.66	0.1999	369.0	248.6
3	152	863	77	439	9.52	316.37	-8.90	42.66	0.2262	2147.9	705.2
4	4	9	2	5	9.80	313.94	-11.33	48.62	0.2591	1021.4	785.9
5	0	10	0	5	9.29	313.34	-11.93	51.61	0.2615	703.0	815.2
6	0	8	0	4	11.36	306.93	-18.34	57.40	0.3677	-913.0	-742.4
7	4	44	2	24	12.08	304.78	-20.49	58.54	0.4031	949.0	522.9
8	0	5	0	3	12.83	302.58	-22.69	59.41	0.4387	-388.0	-165.7
9	8	22	4	11	9.35	311.95	-13.32	54.41	0.2808	1324.4	1063.2
10	15	84	8	43	9.47	311.18	-14.09	55.55	0.2924	1345.8	858.5
11	0	3	0	2	11.23	306.27	-19.00	58.60	0.3758	-913.0	-737.9
12	4	-7	2	-7	11.68	304.64	-20.63	59.58	0.4018	987.0	999999
13	0	5	0	3	11.77	303.33	-21.94	60.84	0.4207	-1003.0	-715.7
14	0	6	0	3	8.17	313.15	-12.12	55.59	0.2531	922.0	848.7
15	5	-7	2	-7	11.29	304.47	-20.80	60.63	0.4013	381.2	999999
16	0	3	0	1	8.97	310.54	-14.73	58.15	0.2971	665.0	528.3
17	0	6	0	3	8.53	310.38	-14.89	59.68	0.2957	1060.0	815.6
18	0	7	0	4	8.48	309.85	-15.42	60.68	0.3030	688.0	520.2
19	0	5	0	2	6.94	314.05	-11.22	57.92	0.2290	761.0	554.6
20	28	502	16	277	11.37	301.15	-24.12	63.77	0.4485	-1481.9	-724.5
21	0	4	0	2	8.52	308.83	-16.44	62.06	0.3182	697.0	635.6
22	37	-20	20	-20	10.84	301.66	-23.61	64.43	0.4379	-1918.3	999999
23	0	4	0	2	11.53	299.59	-25.68	64.76	0.4714	313.0	141.1
24	-22	-20	-22	-20	10.60	302.13	-23.14	64.52	0.4298	999999	999999
25	0	7	0	4	7.92	309.48	-15.79	62.88	0.3042	925.0	818.4
26	0	4	0	2	8.11	308.73	-16.54	63.37	0.3167	892.0	825.3
27	9	-20	5	-20	10.43	301.80	-23.47	65.18	0.4335	-1916.6	999999
28	0	5	0	3	9.59	303.27	-22.00	65.68	0.4070	-1017.0	-899.4
29	0	7	0	4	9.47	301.15	-24.12	67.77	0.4373	-770.0	-667.1
30	0	4	0	2	9.56	300.77	-24.50	67.87	0.4433	-534.0	-558.5

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
