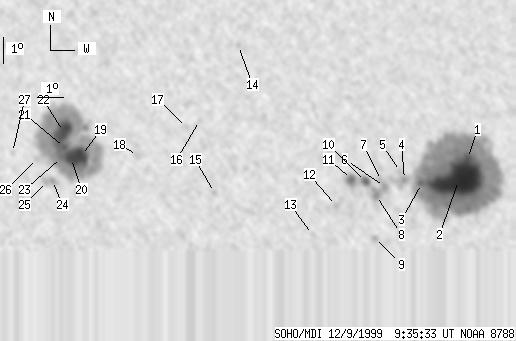

SOHO MDI 1999-12-09 09:35:33 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 244 | 1531 | 123 | 780 | 9.96 | 310.84 | 4.89 | 338.58 | 0.2300 | 681.4 | 197.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 1999-12-09 09:35:33 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6 | 860 | 3 | 439 | 10.35 | 316.91 | 10.96 | 314.38 | 0.2629 | 1469.5 | 725.0 | |
| 138 | -1 | 70 | -1 | 9.50 | 316.53 | 10.58 | 312.92 | 0.2484 | 2145.0 | 999999 | |
| 5 | -1 | 3 | -1 | 9.38 | 315.07 | 9.12 | 316.78 | 0.2294 | 1491.5 | 999999 | |
| 0 | 25 | 0 | 13 | 9.54 | 314.41 | 8.46 | 319.38 | 0.2238 | 1343.0 | 985.0 | |
| 0 | 5 | 0 | 3 | 9.85 | 314.26 | 8.31 | 320.78 | 0.2262 | 797.0 | 656.8 | |
| 0 | 6 | 0 | 3 | 9.26 | 313.62 | 7.67 | 321.30 | 0.2116 | 1367.0 | 1181.9 | |
| 0 | 10 | 0 | 5 | 9.50 | 313.51 | 7.55 | 322.40 | 0.2135 | 831.0 | 983.4 | |
| 3 | 13 | 1 | 7 | 8.91 | 313.30 | 7.35 | 321.42 | 0.2035 | 1352.9 | 1181.7 | |
| 0 | 4 | 0 | 2 | 7.25 | 313.19 | 7.24 | 316.05 | 0.1810 | -519.0 | -453.7 | |
| 6 | 44 | 3 | 22 | 9.46 | 312.88 | 6.93 | 324.64 | 0.2066 | 1408.6 | 1036.8 | |
| 8 | -10 | 4 | -10 | 9.53 | 312.34 | 6.38 | 327.03 | 0.2024 | 1360.2 | 999999 | |
| 0 | 5 | 0 | 3 | 8.53 | 311.73 | 5.78 | 326.70 | 0.1823 | 1019.0 | 776.0 | |
| 0 | 3 | 0 | 2 | 7.41 | 310.79 | 4.84 | 327.71 | 0.1573 | 618.0 | 416.3 | |
| 0 | 4 | 0 | 2 | 14.78 | 307.98 | 2.03 | 352.45 | 0.2619 | 763.0 | 553.7 | |
| 0 | 4 | 0 | 2 | 9.03 | 307.01 | 1.06 | 353.51 | 0.1622 | 842.0 | 625.5 | |
| 0 | 2 | 0 | 1 | 11.83 | 306.43 | 0.48 | 357.74 | 0.2095 | -729.0 | -643.8 | |
| 0 | 3 | 0 | 2 | 11.56 | 305.93 | -0.03 | 0.12 | 0.2047 | -785.0 | -641.4 | |
| 0 | 10 | 0 | 5 | 10.47 | 304.02 | -1.93 | 10.15 | 0.1889 | -669.0 | -562.9 | |
| 20 | 505 | 10 | 255 | 10.47 | 301.84 | -4.11 | 20.86 | 0.1990 | -1991.6 | -769.6 | |
| 22 | -19 | 11 | -19 | 10.35 | 301.45 | -4.50 | 22.86 | 0.1996 | -2204.8 | 999999 | |
| 4 | -19 | 2 | -19 | 10.78 | 301.17 | -4.78 | 23.26 | 0.2082 | -1885.2 | 999999 | |
| 29 | -19 | 15 | -19 | 11.40 | 301.12 | -4.83 | 22.31 | 0.2184 | -1787.2 | 999999 | |
| 3 | -19 | 1 | -19 | 10.39 | 301.06 | -4.89 | 24.53 | 0.2029 | -1572.8 | 999999 | |
| 0 | 11 | 0 | 5 | 9.49 | 300.73 | -5.23 | 28.09 | 0.1917 | -1234.0 | -942.1 | |
| 0 | 10 | 0 | 5 | 9.46 | 300.49 | -5.46 | 29.23 | 0.1931 | -1126.0 | -954.3 | |
| 0 | 3 | 0 | 2 | 10.35 | 300.13 | -5.83 | 28.61 | 0.2095 | -836.0 | -733.2 | |
| 0 | 4 | 0 | 2 | 10.58 | 299.14 | -6.81 | 31.92 | 0.2214 | -695.0 | -539.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
