group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
8788	250	1493	128	769	10.02	310.79	10.10	322.11	0.2706	641.4	197.8

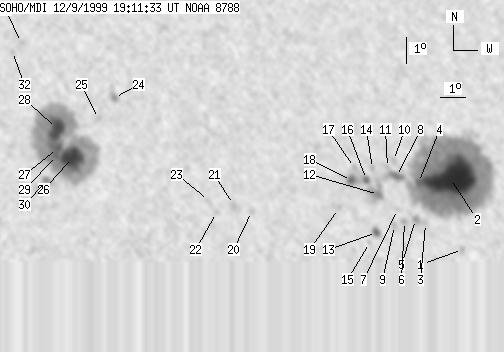

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 1999-12-09 19:11:33 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	4	0	2	6.88	316.96	16.28	293.99	0.3061	-566.0	-400.9
2	138	779	72	407	9.62	316.60	15.91	302.35	0.3215	2060.5	752.0
3	0	5	0	3	7.88	315.52	14.84	299.10	0.2916	526.0	598.0
4	5	-2	2	-2	9.46	315.30	14.62	304.10	0.3021	1780.3	999999
5	0	8	0	4	8.03	315.13	14.44	300.22	0.2871	787.0	692.8
6	0	7	0	3	7.95	314.69	14.00	300.75	0.2801	899.0	702.2
7	0	3	0	2	8.42	314.42	13.74	302.65	0.2803	592.0	585.4
8	8	20	4	10	9.69	314.43	13.75	306.37	0.2923	1253.5	1006.8
9	0	5	0	3	7.80	314.28	13.60	300.98	0.2730	652.0	569.4
10	0	6	0	3	10.32	314.34	13.66	308.27	0.2972	322.0	290.1
11	0	7	0	3	10.04	314.09	13.41	308.03	0.2912	880.0	687.4
12	6	31	3	16	9.00	313.69	13.01	305.84	0.2755	985.5	964.0
13	5	11	2	6	7.53	313.56	12.88	301.46	0.2602	-795.5	-417.6
14	0	5	0	3	10.00	313.49	12.81	309.18	0.2829	1001.0	808.8
15	0	3	0	2	7.14	313.27	12.59	300.72	0.2527	-399.0	-286.7
16	4	30	2	15	9.58	313.23	12.55	308.52	0.2751	1130.7	1045.2
17	0	4	0	2	10.04	312.77	12.09	310.88	0.2741	201.0	246.8
18	6	-16	3	-16	9.54	312.64	11.95	309.75	0.2669	1363.2	999999
19	0	3	0	2	8.45	312.09	11.40	307.71	0.2484	923.0	854.6
20	0	5	0	2	8.33	308.67	7.99	317.33	0.2039	767.0	637.0
21	0	6	0	3	8.60	307.98	7.29	320.79	0.1995	935.0	854.3
22	0	4	0	2	8.29	307.31	6.63	322.45	0.1882	852.0	696.4
23	0	3	0	1	8.76	307.01	6.32	325.19	0.1916	851.0	771.9
24	0	8	0	4	12.77	303.39	2.71	348.43	0.2310	728.0	588.0
25	0	3	0	2	11.95	302.76	2.08	350.47	0.2152	-410.0	-433.1
26	40	513	20	259	10.42	301.74	1.05	354.42	0.1870	-2121.1	-758.3
27	3	-26	2	-26	10.77	301.16	0.47	357.58	0.1923	-1938.4	999999
28	31	-26	16	-26	11.55	301.12	0.43	357.92	0.2057	-1762.6	999999
29	2	-26	1	-26	10.50	301.12	0.43	357.72	0.1876	-1912.9	999999
30	2	12	1	6	9.53	300.73	0.04	359.75	0.1707	-1362.0	-1025.3
31	0	3	0	2	14.94	299.74	-0.94	3.48	0.2637	-730.0	-753.2
32	0	5	0	2	14.58	299.38	-1.30	4.90	0.2581	-762.0	-635.1

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
