group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
8788	238	1561	128	847	9.79	311.75	20.73	299.46	0.3966	445.9	215.7

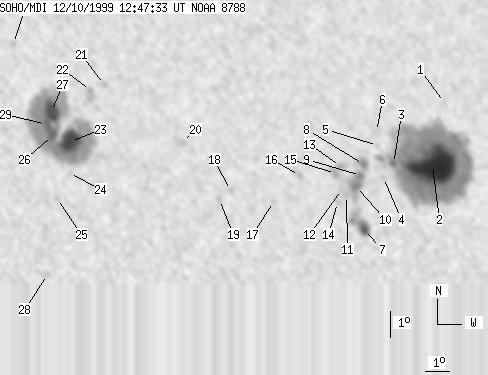

previous   or   next   observation for the same group / back to the solar disc SOHO MDI 1999-12-10 12:47:33 UT

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0	2	0	1	11.94	317.67	26.64	295.81	0.4894	-584.0	-415.7
2	122	877	68	490	9.48	316.92	25.89	291.55	0.4650	1786.5	682.8
3	4	-2	2	-2	9.56	315.25	24.23	292.96	0.4413	1414.3	999999
4	0	4	0	2	9.01	314.79	23.76	292.16	0.4316	774.0	719.8
5	0	3	0	2	10.26	314.62	23.60	294.97	0.4364	431.0	289.5
6	0	2	0	1	10.80	314.63	23.60	296.11	0.4399	241.0	323.5
7	9	50	5	27	7.00	313.86	22.84	288.29	0.4075	757.8	-344.3
8	5	16	3	9	9.52	313.98	22.95	293.94	0.4226	1183.2	908.3
9	4	42	2	23	9.09	313.82	22.80	293.13	0.4178	1216.5	683.5
10	9	-9	5	-9	8.66	313.62	22.60	292.33	0.4125	840.8	999999
11	0	4	0	2	8.31	313.18	22.16	291.90	0.4040	738.0	684.5
12	0	4	0	2	8.54	312.99	21.97	292.61	0.4025	914.0	901.3
13	0	6	0	3	9.44	313.01	21.98	294.65	0.4080	1040.0	864.7
14	0	3	0	1	8.04	312.79	21.77	291.60	0.3967	799.0	788.1
15	0	10	0	5	9.16	312.78	21.75	294.24	0.4030	1244.0	959.7
16	0	11	0	6	9.08	311.28	20.25	295.55	0.3806	897.0	570.3
17	0	3	0	2	8.07	310.16	19.13	294.23	0.3574	730.0	651.3
18	0	5	0	3	8.49	308.43	17.40	297.41	0.3347	949.0	687.9
19	0	5	0	3	8.15	307.96	16.94	297.06	0.3254	860.0	676.7
20	0	6	0	3	10.35	306.58	15.55	305.11	0.3239	-780.0	-634.9
21	0	4	0	2	12.61	303.55	12.53	316.63	0.3097	684.0	548.5
22	0	14	0	7	12.38	302.98	11.96	317.40	0.3003	-613.0	-321.0
23	41	475	21	244	10.39	302.10	11.08	314.55	0.2664	-1826.6	-771.7
24	0	3	0	2	9.14	302.02	11.00	311.17	0.2513	-442.0	-375.5
25	0	5	0	3	8.17	301.52	10.50	309.38	0.2344	-950.0	-767.5
26	10	-23	5	-23	10.62	301.40	10.37	317.04	0.2609	-1861.3	999999
27	24	-23	12	-23	11.55	301.39	10.37	319.45	0.2725	-1713.4	999999
28	0	2	0	1	5.25	301.07	10.04	299.27	0.2000	-709.0	-633.1
29	10	-23	5	-23	11.05	301.18	10.15	318.77	0.2637	-1848.9	999999
30	0	5	0	3	14.22	299.98	8.96	329.02	0.2946	-1050.0	-804.0

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
