groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

8788 154 1023 109 721 9.88 312.05 43.86 285.09 0.7040 90.2 61.7


previous   or   next   observation for the same group / back to the solar disc

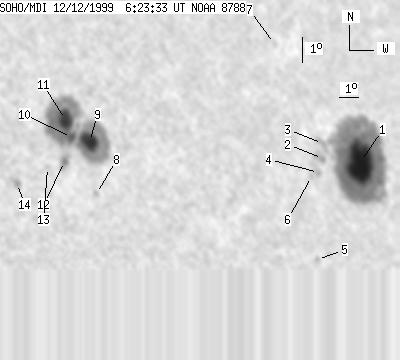

SOHO MDI 1999-12-12 06:23:33 UT
No observation available


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 94 573 72 440 9.55 317.30 49.10 283.01 0.7674 862.7 412.3
2 0 13 0 10 9.65 315.10 46.91 283.60 0.7431 916.0 844.4
3 0 14 0 10 10.23 315.21 47.02 284.35 0.7455 395.0 457.7
4 0 6 0 4 9.10 314.78 46.58 282.94 0.7383 890.0 834.9
5 0 3 0 2 5.73 314.26 46.07 278.47 0.7268 413.0 305.6
6 0 2 0 2 8.94 314.36 46.16 282.82 0.7331 746.0 561.3
7 0 3 0 2 14.14 313.37 45.18 290.05 0.7346 239.0 339.2
8 0 4 0 3 8.21 303.25 35.06 284.84 0.5905 -549.0 -458.5
9 27 378 16 232 10.22 303.15 34.96 288.20 0.5959 -1414.1 -609.8
10 6 -9 4 -9 10.37 302.32 34.13 288.82 0.5853 -1477.4 999999
11 24 -9 15 -9 11.07 302.13 33.94 290.06 0.5855 -1521.7 999999
12 3 14 2 9 9.44 301.88 33.69 287.46 0.5758 -1156.6 -913.0
13 0 2 0 1 9.20 301.07 32.87 287.41 0.5638 168.0 170.4
14 0 11 0 6 8.57 299.63 31.44 286.97 0.5414 -1017.0 -835.5


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
