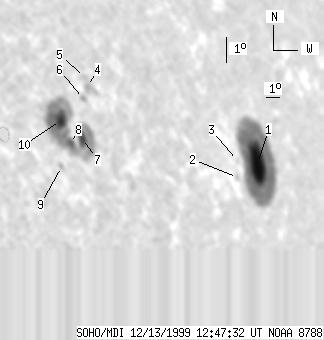

SOHO MDI 1999-12-13 12:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92 | 636 | 99 | 669 | 9.82 | 312.67 | 61.16 | 281.74 | 0.8780 | 3.2 | -42.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 1999-12-13 12:47:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58 | 359 | 71 | 441 | 9.39 | 317.27 | 65.76 | 280.60 | 0.9170 | 306.2 | 120.1 | |
| 0 | 3 | 0 | 3 | 8.83 | 315.24 | 63.73 | 280.17 | 0.9021 | 469.0 | 547.9 | |
| 0 | 2 | 0 | 2 | 9.49 | 315.46 | 63.95 | 280.88 | 0.9042 | 521.0 | 487.8 | |
| 0 | 17 | 0 | 14 | 12.26 | 304.98 | 53.47 | 285.63 | 0.8176 | -73.0 | 191.7 | |
| 0 | 7 | 0 | 6 | 12.61 | 304.89 | 53.38 | 286.07 | 0.8173 | 358.0 | 330.3 | |
| 0 | 6 | 0 | 5 | 11.78 | 304.58 | 53.07 | 285.13 | 0.8129 | -261.0 | -267.2 | |
| 11 | 238 | 9 | 195 | 10.22 | 304.11 | 52.60 | 283.31 | 0.8057 | -540.5 | -440.0 | |
| 6 | -7 | 5 | -7 | 10.01 | 303.30 | 51.79 | 283.21 | 0.7971 | -829.5 | 999999 | |
| 0 | 4 | 0 | 3 | 9.11 | 302.54 | 51.03 | 282.21 | 0.7878 | -605.0 | -407.4 | |
| 17 | -7 | 14 | -7 | 10.90 | 302.88 | 51.37 | 284.40 | 0.7942 | -913.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
