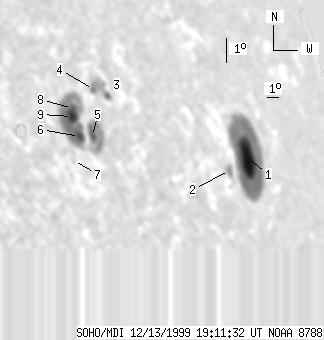

SOHO MDI 1999-12-13 19:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90 | 564 | 108 | 669 | 9.81 | 312.61 | 64.61 | 281.32 | 0.9041 | -41.3 | -46.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 1999-12-13 19:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52 | 300 | 75 | 428 | 9.39 | 317.26 | 69.26 | 280.31 | 0.9394 | 258.1 | 70.5 | |
| 0 | 11 | 0 | 15 | 8.90 | 315.15 | 67.16 | 279.95 | 0.9261 | 507.0 | 454.7 | |
| 3 | 9 | 2 | 8 | 11.70 | 305.77 | 57.77 | 284.21 | 0.8566 | 246.8 | 207.8 | |
| 2 | 24 | 1 | 22 | 11.93 | 304.82 | 56.82 | 284.63 | 0.8485 | -363.2 | 131.9 | |
| 7 | 66 | 6 | 60 | 10.08 | 304.20 | 56.20 | 282.56 | 0.8404 | -389.0 | 28.4 | |
| 8 | 153 | 7 | 135 | 10.07 | 303.30 | 55.30 | 282.69 | 0.8319 | -849.7 | -568.4 | |
| 0 | 1 | 0 | 1 | 9.13 | 302.66 | 54.66 | 281.66 | 0.8246 | -273.0 | -303.3 | |
| 3 | -6 | 3 | -6 | 11.16 | 303.11 | 55.11 | 284.02 | 0.8317 | -661.9 | 999999 | |
| 15 | -6 | 14 | -6 | 10.85 | 302.95 | 54.96 | 283.68 | 0.8298 | -999.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
