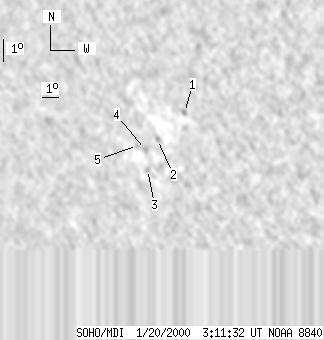

SOHO MDI 2000-01-20 03:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 17 | 0 | 14 | -24.80 | 70.19 | -46.03 | 119.06 | 0.7496 | 207.8 | 219.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-20 03:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 3 | -23.64 | 72.50 | -43.72 | 118.38 | 0.7221 | -364.0 | -342.0 | |
| 0 | 3 | 0 | 2 | -24.63 | 70.46 | -45.77 | 118.94 | 0.7467 | -292.0 | -156.2 | |
| 0 | 3 | 0 | 3 | -25.80 | 69.26 | -46.96 | 120.02 | 0.7624 | 469.0 | 477.9 | |
| 0 | 5 | 0 | 4 | -24.99 | 69.55 | -46.68 | 119.09 | 0.7569 | 690.0 | 520.5 | |
| 0 | 2 | 0 | 2 | -24.80 | 69.15 | -47.08 | 118.72 | 0.7603 | 536.0 | 444.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
