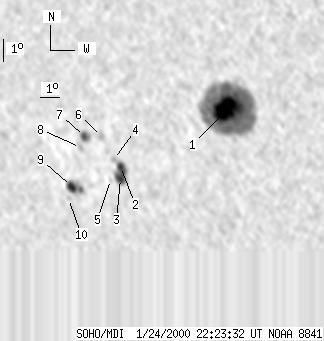

SOHO MDI 2000-01-24 22:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68 | 440 | 43 | 268 | -29.18 | 23.82 | -29.16 | 134.35 | 0.5951 | -865.0 | -360.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-24 22:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43 | 347 | 26 | 209 | -28.70 | 25.48 | -27.50 | 134.99 | 0.5750 | -1663.0 | -583.4 | |
| 4 | 33 | 3 | 21 | -30.84 | 19.31 | -33.68 | 132.95 | 0.6528 | 813.1 | 200.4 | |
| 9 | -2 | 6 | -2 | -31.35 | 19.10 | -33.88 | 133.46 | 0.6583 | -623.8 | 999999 | |
| 0 | 5 | 0 | 3 | -30.53 | 19.06 | -33.93 | 132.37 | 0.6531 | 497.0 | 303.5 | |
| 0 | 1 | 0 | 1 | -31.36 | 18.55 | -34.43 | 133.11 | 0.6636 | -621.0 | -513.7 | |
| 0 | 7 | 0 | 4 | -29.54 | 18.80 | -34.18 | 130.88 | 0.6488 | 860.0 | 740.7 | |
| 4 | 13 | 3 | 8 | -29.49 | 17.91 | -35.07 | 130.23 | 0.6575 | 928.4 | 821.6 | |
| 0 | 5 | 0 | 3 | -29.94 | 17.51 | -35.47 | 130.57 | 0.6643 | 702.0 | 549.3 | |
| 8 | 26 | 5 | 17 | -31.55 | 16.31 | -36.67 | 131.90 | 0.6861 | 692.6 | 584.4 | |
| 0 | 3 | 0 | 2 | -32.05 | 15.91 | -37.07 | 132.28 | 0.6930 | -266.0 | -249.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
