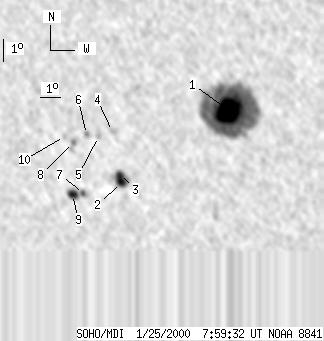

SOHO MDI 2000-01-25 07:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68 | 446 | 41 | 264 | -29.10 | 23.69 | -24.03 | 139.13 | 0.5437 | -1120.1 | -400.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-25 07:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49 | 363 | 29 | 211 | -28.67 | 25.14 | -22.58 | 139.96 | 0.5258 | -1759.9 | -594.6 | |
| 5 | 29 | 3 | 18 | -31.49 | 19.09 | -28.63 | 137.71 | 0.6095 | -835.6 | 4.9 | |
| 4 | -2 | 3 | -2 | -31.15 | 19.10 | -28.61 | 137.28 | 0.6064 | 680.3 | 999999 | |
| 0 | 6 | 0 | 4 | -29.33 | 19.32 | -28.39 | 135.03 | 0.5888 | 685.0 | 699.9 | |
| 0 | 6 | 0 | 4 | -29.51 | 18.57 | -29.15 | 134.62 | 0.5979 | 743.0 | 512.4 | |
| 0 | 4 | 0 | 2 | -29.40 | 17.99 | -29.72 | 134.00 | 0.6027 | 684.0 | 682.3 | |
| 2 | 23 | 1 | 15 | -31.87 | 16.98 | -30.73 | 136.45 | 0.6322 | 611.3 | 489.1 | |
| 0 | 11 | 0 | 7 | -29.70 | 17.23 | -30.48 | 133.79 | 0.6127 | 985.0 | 649.9 | |
| 8 | -7 | 5 | -7 | -31.89 | 16.39 | -31.32 | 136.01 | 0.6378 | 616.0 | 999999 | |
| 0 | 4 | 0 | 3 | -29.43 | 16.86 | -30.85 | 133.13 | 0.6143 | 733.0 | 543.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
