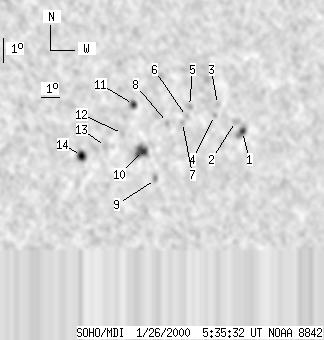

SOHO MDI 2000-01-26 05:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18 | 101 | 12 | 65 | -17.03 | 76.31 | 40.45 | 250.24 | 0.6610 | 245.7 | -96.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-26 05:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3 | 12 | 2 | 8 | -16.65 | 80.56 | 44.70 | 251.93 | 0.7113 | -638.1 | -578.2 | |
| 0 | 6 | 0 | 4 | -16.29 | 80.06 | 44.20 | 252.33 | 0.7047 | -893.0 | -622.2 | |
| 0 | 4 | 0 | 3 | -15.70 | 78.90 | 43.05 | 252.93 | 0.6898 | -336.0 | -383.7 | |
| 0 | 2 | 0 | 2 | -16.13 | 78.85 | 43.00 | 252.29 | 0.6901 | -542.0 | -487.2 | |
| 0 | 6 | 0 | 4 | -15.87 | 77.43 | 41.58 | 252.35 | 0.6723 | -694.0 | -462.4 | |
| 0 | 5 | 0 | 3 | -16.26 | 77.37 | 41.52 | 251.75 | 0.6724 | -412.0 | -340.0 | |
| 0 | 3 | 0 | 2 | -16.51 | 77.22 | 41.37 | 251.35 | 0.6711 | -196.0 | -362.7 | |
| 0 | 4 | 0 | 2 | -16.56 | 76.44 | 40.59 | 251.07 | 0.6616 | 208.0 | 361.6 | |
| 0 | 5 | 0 | 3 | -18.81 | 76.42 | 40.57 | 247.74 | 0.6675 | -696.0 | -546.0 | |
| 6 | 21 | 4 | 13 | -17.72 | 75.43 | 39.57 | 249.03 | 0.6522 | -125.4 | -344.2 | |
| 3 | 8 | 2 | 5 | -15.96 | 74.53 | 38.67 | 251.44 | 0.6361 | 728.3 | 550.4 | |
| 0 | 5 | 0 | 3 | -17.12 | 74.24 | 38.39 | 249.56 | 0.6356 | 598.0 | 572.9 | |
| 0 | 7 | 0 | 5 | -17.67 | 73.51 | 37.65 | 248.45 | 0.6281 | 634.0 | 476.5 | |
| 6 | 13 | 4 | 8 | -18.09 | 72.40 | 36.54 | 247.38 | 0.6155 | 1056.7 | 636.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
