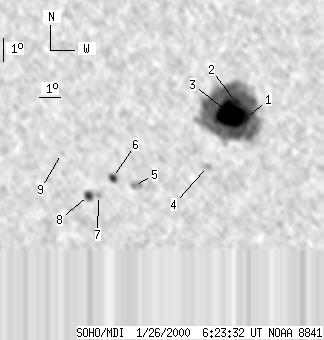

SOHO MDI 2000-01-26 06:23:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 79 | 449 | 43 | 249 | -29.01 | 23.95 | -11.47 | 156.67 | 0.4386 | -1473.0 | -528.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-26 06:23:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 408 | 4 | 224 | -28.93 | 25.08 | -10.34 | 158.50 | 0.4305 | -1233.4 | -624.9 | |
| 6 | -1 | 3 | -1 | -28.25 | 24.75 | -10.67 | 157.21 | 0.4228 | -1985.0 | 999999 | |
| 57 | -1 | 31 | -1 | -28.75 | 24.43 | -10.99 | 157.13 | 0.4318 | -1866.1 | 999999 | |
| 0 | 5 | 0 | 3 | -30.91 | 23.14 | -12.28 | 157.05 | 0.4700 | 329.0 | 448.7 | |
| 0 | 9 | 0 | 5 | -31.65 | 19.65 | -15.77 | 152.46 | 0.5024 | -823.0 | -509.4 | |
| 4 | 10 | 2 | 6 | -31.28 | 18.69 | -16.73 | 150.70 | 0.5047 | 873.9 | 673.2 | |
| 0 | 3 | 0 | 2 | -32.03 | 17.88 | -17.53 | 150.44 | 0.5199 | 776.0 | 573.6 | |
| 5 | 11 | 3 | 7 | -32.02 | 17.41 | -18.01 | 149.80 | 0.5232 | 770.8 | 502.0 | |
| 0 | 3 | 0 | 2 | -30.20 | 16.50 | -18.91 | 146.44 | 0.5088 | 522.0 | 493.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
