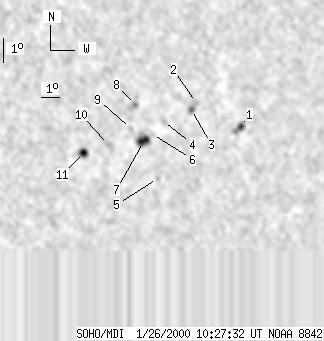

SOHO MDI 2000-01-26 10:27:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15 | 80 | 10 | 53 | -17.15 | 76.02 | 42.83 | 250.73 | 0.6899 | -51.9 | -45.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-26 10:27:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2 | 13 | 2 | 10 | -16.64 | 80.54 | 47.36 | 252.47 | 0.7415 | -666.2 | -498.0 | |
| 0 | 3 | 0 | 2 | -15.89 | 77.77 | 44.59 | 252.99 | 0.7085 | -707.0 | -636.9 | |
| 0 | 6 | 0 | 4 | -16.17 | 77.57 | 44.39 | 252.55 | 0.7067 | -704.0 | -734.5 | |
| 0 | 5 | 0 | 3 | -16.74 | 76.18 | 43.00 | 251.44 | 0.6913 | 201.0 | 266.6 | |
| 0 | 3 | 0 | 2 | -18.97 | 76.53 | 43.34 | 248.37 | 0.7006 | -450.0 | -417.7 | |
| 0 | 2 | 0 | 1 | -17.28 | 75.73 | 42.55 | 250.56 | 0.6871 | 512.0 | 505.9 | |
| 8 | 18 | 5 | 12 | -17.58 | 75.33 | 42.14 | 250.02 | 0.6830 | -395.4 | -200.1 | |
| 0 | 10 | 0 | 6 | -16.17 | 74.52 | 41.33 | 251.86 | 0.6698 | 615.0 | 302.1 | |
| 0 | 3 | 0 | 2 | -17.12 | 74.50 | 41.31 | 250.46 | 0.6719 | 762.0 | 696.8 | |
| 0 | 6 | 0 | 4 | -17.81 | 73.52 | 40.33 | 249.16 | 0.6617 | 570.0 | 461.7 | |
| 5 | 11 | 3 | 7 | -18.20 | 72.31 | 39.12 | 248.19 | 0.6480 | 849.2 | 519.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
