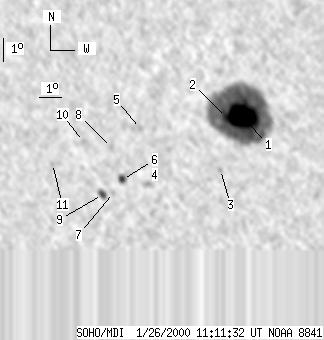

SOHO MDI 2000-01-26 11:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74 | 474 | 40 | 260 | -29.03 | 23.73 | -9.05 | 161.19 | 0.4251 | -1523.9 | -498.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-26 11:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64 | 428 | 35 | 233 | -28.80 | 24.36 | -8.42 | 162.06 | 0.4182 | -1892.3 | -612.8 | |
| 3 | -1 | 1 | -1 | -28.84 | 23.65 | -9.13 | 160.70 | 0.4223 | -1263.0 | 999999 | |
| 0 | 3 | 0 | 2 | -31.02 | 23.18 | -9.60 | 161.67 | 0.4566 | 650.0 | 488.6 | |
| 0 | 6 | 0 | 3 | -31.60 | 19.77 | -13.01 | 156.53 | 0.4835 | -653.0 | -447.8 | |
| 0 | 4 | 0 | 2 | -29.23 | 19.77 | -13.01 | 154.08 | 0.4513 | 814.0 | 790.0 | |
| 4 | 8 | 2 | 4 | -31.36 | 18.65 | -14.13 | 154.56 | 0.4874 | 936.2 | 680.6 | |
| 0 | 3 | 0 | 2 | -31.91 | 18.14 | -14.64 | 154.36 | 0.4979 | 600.0 | 428.9 | |
| 0 | 5 | 0 | 3 | -30.00 | 18.35 | -14.43 | 152.63 | 0.4715 | 671.0 | 658.4 | |
| 3 | 10 | 2 | 6 | -31.98 | 17.62 | -15.17 | 153.67 | 0.5024 | 907.0 | 548.1 | |
| 0 | 4 | 0 | 3 | -29.72 | 17.11 | -15.67 | 150.40 | 0.4769 | 834.0 | 687.4 | |
| 0 | 3 | 0 | 2 | -30.61 | 15.52 | -17.26 | 149.16 | 0.5001 | 668.0 | 540.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
