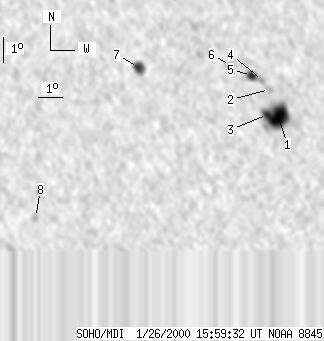

SOHO MDI 2000-01-26 15:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53 | 150 | 27 | 77 | -15.73 | 19.16 | -10.98 | 134.76 | 0.2586 | -719.4 | -136.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-26 15:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31 | 93 | 16 | 47 | -16.20 | 20.49 | -9.65 | 139.15 | 0.2473 | -1682.7 | -670.0 | |
| 0 | 6 | 0 | 3 | -15.14 | 20.18 | -9.96 | 135.20 | 0.2381 | 509.0 | 301.8 | |
| 6 | -1 | 3 | -1 | -16.11 | 20.05 | -10.09 | 137.68 | 0.2512 | -993.9 | 999999 | |
| 0 | 7 | 0 | 4 | -14.79 | 19.92 | -10.23 | 133.36 | 0.2373 | 746.0 | 608.2 | |
| 6 | 13 | 3 | 7 | -14.58 | 19.48 | -10.66 | 131.57 | 0.2405 | 1046.1 | 838.0 | |
| 0 | 7 | 0 | 4 | -14.18 | 18.66 | -11.49 | 128.23 | 0.2470 | 918.0 | 708.8 | |
| 10 | 18 | 5 | 9 | -14.18 | 14.92 | -15.22 | 121.08 | 0.2987 | 1232.9 | 779.7 | |
| 0 | 6 | 0 | 3 | -19.91 | 10.02 | -20.13 | 128.11 | 0.4130 | 836.0 | 635.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
