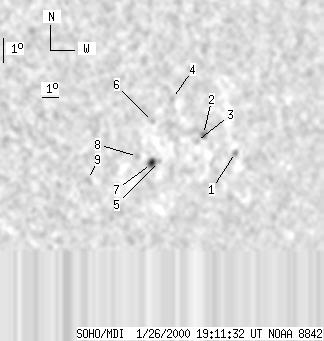

SOHO MDI 2000-01-26 19:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3 | 41 | 2 | 30 | -16.74 | 76.05 | 47.66 | 252.36 | 0.7447 | 60.0 | -16.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-26 19:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 3 | -16.60 | 80.39 | 52.00 | 253.24 | 0.7910 | -471.0 | -449.2 | |
| 0 | 6 | 0 | 5 | -16.06 | 78.16 | 49.77 | 253.65 | 0.7669 | -788.0 | -670.3 | |
| 0 | 3 | 0 | 2 | -16.36 | 77.83 | 49.44 | 253.21 | 0.7638 | -420.0 | -554.8 | |
| 0 | 4 | 0 | 3 | -14.80 | 75.89 | 47.50 | 254.99 | 0.7404 | 326.0 | 221.4 | |
| 0 | 1 | 0 | 1 | -17.29 | 75.84 | 47.45 | 251.65 | 0.7435 | 308.0 | 319.8 | |
| 0 | 3 | 0 | 2 | -15.77 | 75.00 | 46.61 | 253.55 | 0.7316 | 361.0 | 254.1 | |
| 3 | 10 | 2 | 7 | -17.39 | 75.46 | 47.07 | 251.44 | 0.7395 | 82.7 | 82.6 | |
| 0 | 4 | 0 | 3 | -17.18 | 74.57 | 46.18 | 251.55 | 0.7291 | 467.0 | 432.1 | |
| 0 | 6 | 0 | 4 | -18.25 | 72.12 | 43.73 | 249.51 | 0.7032 | 470.0 | 488.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
