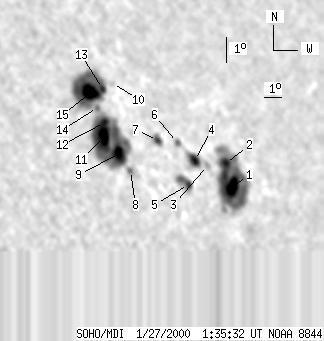

SOHO MDI 2000-01-27 01:35:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118 | 652 | 86 | 486 | 4.87 | 71.96 | 47.09 | 281.75 | 0.7467 | -356.7 | -71.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-27 01:35:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17 | 215 | 13 | 173 | 3.66 | 76.16 | 51.28 | 279.06 | 0.7908 | 948.6 | 379.5 | |
| 9 | -1 | 7 | -1 | 4.52 | 75.81 | 50.93 | 280.22 | 0.7887 | 882.3 | 999999 | |
| 0 | 4 | 0 | 3 | 4.36 | 74.70 | 49.82 | 280.28 | 0.7766 | 754.0 | 685.0 | |
| 10 | 22 | 8 | 17 | 4.50 | 73.94 | 49.06 | 280.64 | 0.7686 | 980.9 | 709.7 | |
| 3 | 23 | 2 | 18 | 3.54 | 73.51 | 48.63 | 279.51 | 0.7619 | 841.5 | 769.2 | |
| 0 | 6 | 0 | 4 | 5.13 | 73.01 | 48.13 | 281.70 | 0.7598 | 616.0 | 565.3 | |
| 4 | 13 | 3 | 10 | 5.12 | 71.86 | 46.99 | 282.01 | 0.7469 | 942.0 | 686.5 | |
| 0 | 7 | 0 | 5 | 3.84 | 70.25 | 45.37 | 280.75 | 0.7252 | -615.0 | -378.4 | |
| 20 | 220 | 14 | 156 | 4.46 | 69.69 | 44.82 | 281.75 | 0.7201 | -825.4 | -486.0 | |
| 0 | 3 | 0 | 2 | 7.19 | 69.59 | 44.72 | 285.45 | 0.7266 | -337.0 | -202.4 | |
| 21 | -9 | 15 | -9 | 5.07 | 68.93 | 44.06 | 282.81 | 0.7127 | -1434.1 | 999999 | |
| 6 | -9 | 4 | -9 | 5.62 | 68.98 | 44.11 | 283.55 | 0.7149 | -981.0 | 999999 | |
| 4 | 135 | 3 | 95 | 6.95 | 69.02 | 44.14 | 285.34 | 0.7193 | -355.6 | -600.6 | |
| 0 | 4 | 0 | 3 | 6.19 | 68.67 | 43.79 | 284.42 | 0.7128 | -882.0 | -714.6 | |
| 24 | -13 | 17 | -13 | 6.75 | 68.35 | 43.48 | 285.30 | 0.7108 | -1396.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
