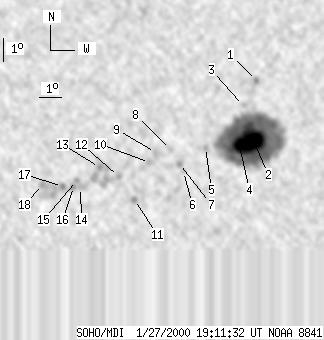

SOHO MDI 2000-01-27 19:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54 | 571 | 29 | 308 | -29.40 | 21.58 | 6.37 | 193.52 | 0.4197 | -1654.7 | -329.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-27 19:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 4 | 0 | 2 | -26.48 | 23.54 | 8.33 | 199.97 | 0.3813 | 667.0 | 512.5 | |
| 54 | 414 | 29 | 225 | -28.96 | 23.60 | 8.39 | 197.83 | 0.4188 | -1910.1 | -698.0 | |
| 0 | 4 | 0 | 2 | -27.51 | 23.05 | 7.84 | 197.95 | 0.3944 | -768.0 | -713.4 | |
| -2 | -2 | -2 | -2 | -29.18 | 23.00 | 7.79 | 196.46 | 0.4192 | 999999 | 999999 | |
| 0 | 5 | 0 | 2 | -29.28 | 21.50 | 6.29 | 193.39 | 0.4146 | -605.0 | -509.8 | |
| 0 | 3 | 0 | 1 | -30.29 | 20.59 | 5.37 | 190.96 | 0.4273 | 604.0 | 575.8 | |
| 0 | 5 | 0 | 3 | -29.96 | 20.39 | 5.18 | 190.74 | 0.4215 | 830.0 | 809.2 | |
| 0 | 4 | 0 | 2 | -29.37 | 19.96 | 4.75 | 190.15 | 0.4112 | 743.0 | 723.6 | |
| 0 | 8 | 0 | 4 | -29.51 | 19.31 | 4.09 | 188.72 | 0.4115 | 946.0 | 799.5 | |
| 0 | 4 | 0 | 2 | -29.93 | 19.06 | 3.85 | 188.04 | 0.4175 | 839.0 | 702.6 | |
| 0 | 6 | 0 | 3 | -31.50 | 18.45 | 3.23 | 186.29 | 0.4409 | 837.0 | 741.6 | |
| 0 | 3 | 0 | 2 | -30.52 | 17.70 | 2.49 | 185.08 | 0.4245 | 824.0 | 759.2 | |
| 0 | 46 | 0 | 25 | -30.15 | 16.85 | 1.64 | 183.41 | 0.4175 | 1060.0 | 774.1 | |
| 0 | 9 | 0 | 5 | -30.99 | 16.02 | 0.80 | 181.60 | 0.4304 | 810.0 | 729.9 | |
| 0 | 4 | 0 | 2 | -30.70 | 15.84 | 0.62 | 181.26 | 0.4256 | 686.0 | 589.2 | |
| 0 | 6 | 0 | 3 | -30.95 | 15.70 | 0.49 | 180.98 | 0.4296 | 1008.0 | 759.3 | |
| 0 | 7 | 0 | 4 | -30.95 | 15.21 | 0.00 | 180.00 | 0.4296 | 1017.0 | 769.4 | |
| 0 | 39 | 0 | 21 | -30.87 | 14.32 | -0.90 | 178.20 | 0.4284 | 1054.0 | 699.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
