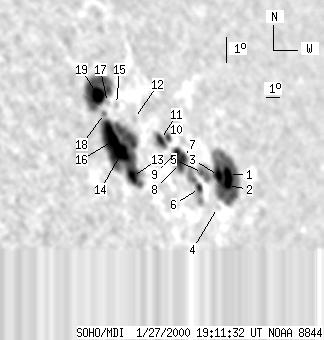

SOHO MDI 2000-01-27 19:11:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 104 | 647 | 96 | 605 | 4.53 | 72.27 | 57.05 | 279.02 | 0.8476 | -139.3 | -42.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-27 19:11:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9 | 161 | 9 | 172 | 4.16 | 77.19 | 61.97 | 277.64 | 0.8902 | 120.8 | 122.3 | |
| 4 | -1 | 5 | -1 | 3.72 | 77.05 | 61.83 | 277.18 | 0.8886 | 347.4 | 999999 | |
| 7 | -1 | 8 | -1 | 4.05 | 76.36 | 61.14 | 277.66 | 0.8835 | 847.9 | 999999 | |
| 0 | 1 | 0 | 1 | 2.79 | 76.14 | 60.93 | 276.28 | 0.8802 | 146.0 | 248.9 | |
| 0 | 24 | 0 | 24 | 4.05 | 75.10 | 59.89 | 277.88 | 0.8731 | 775.0 | 508.3 | |
| 3 | 37 | 3 | 37 | 3.41 | 74.80 | 59.58 | 277.20 | 0.8697 | 477.8 | 564.8 | |
| 5 | 40 | 4 | 38 | 4.52 | 73.72 | 58.51 | 278.66 | 0.8619 | 737.7 | 654.6 | |
| 8 | -7 | 8 | -7 | 4.26 | 73.39 | 58.18 | 278.42 | 0.8587 | 890.9 | 999999 | |
| 4 | -7 | 4 | -7 | 4.72 | 73.30 | 58.09 | 278.97 | 0.8586 | 689.0 | 999999 | |
| 1 | 24 | 1 | 23 | 5.21 | 72.72 | 57.50 | 279.65 | 0.8541 | 376.3 | 556.9 | |
| 6 | -10 | 6 | -10 | 5.08 | 72.13 | 56.91 | 279.63 | 0.8486 | 720.0 | 999999 | |
| 0 | 5 | 0 | 4 | 5.76 | 70.42 | 55.20 | 280.78 | 0.8339 | 233.0 | 208.8 | |
| 11 | 233 | 10 | 202 | 3.47 | 70.02 | 54.80 | 278.14 | 0.8262 | -517.1 | -354.8 | |
| 20 | -13 | 17 | -13 | 4.35 | 69.37 | 54.16 | 279.33 | 0.8214 | -901.2 | 999999 | |
| 0 | 3 | 0 | 3 | 6.21 | 69.28 | 54.07 | 281.58 | 0.8239 | -93.0 | -15.2 | |
| 10 | -13 | 8 | -13 | 4.78 | 68.89 | 53.68 | 279.95 | 0.8174 | -1078.5 | 999999 | |
| 0 | 3 | 0 | 2 | 6.24 | 68.69 | 53.48 | 281.76 | 0.8183 | -276.0 | -220.8 | |
| 0 | 4 | 0 | 4 | 5.79 | 68.43 | 53.22 | 281.28 | 0.8148 | -660.0 | -489.8 | |
| 16 | 112 | 13 | 95 | 6.47 | 68.15 | 52.93 | 282.17 | 0.8133 | -1001.1 | -467.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
