SOHO MDI 2000-01-27 20:47:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 109 | 646 | 104 | 615 | 4.61 | 72.12 | 57.78 | 278.97 | 0.8542 | -246.5 | -25.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-27 20:47:32 UT |

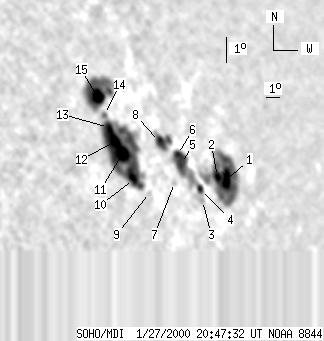

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15 | 173 | 17 | 190 | 3.99 | 77.12 | 62.78 | 277.33 | 0.8963 | 264.3 | 143.3 | |
| 6 | -1 | 7 | -1 | 4.04 | 76.37 | 62.03 | 277.51 | 0.8906 | 834.1 | 999999 | |
| 0 | 5 | 0 | 5 | 3.00 | 75.04 | 60.70 | 276.55 | 0.8786 | 379.0 | 371.6 | |
| 4 | 7 | 4 | 8 | 3.41 | 74.92 | 60.59 | 277.04 | 0.8782 | 443.8 | 460.1 | |
| 11 | 64 | 11 | 63 | 4.30 | 73.56 | 59.22 | 278.29 | 0.8678 | 824.3 | 658.8 | |
| 5 | -5 | 5 | -5 | 4.63 | 73.30 | 58.96 | 278.71 | 0.8661 | 624.6 | 999999 | |
| 0 | 3 | 0 | 3 | 3.51 | 72.94 | 58.61 | 277.49 | 0.8614 | 237.0 | 157.7 | |
| 6 | 33 | 5 | 32 | 5.03 | 72.03 | 57.69 | 279.41 | 0.8555 | 697.3 | 599.6 | |
| 0 | 2 | 0 | 2 | 2.97 | 71.08 | 56.75 | 277.19 | 0.8439 | -270.0 | -248.5 | |
| 8 | 250 | 7 | 219 | 3.39 | 70.01 | 55.67 | 277.88 | 0.8344 | -632.5 | -322.8 | |
| 14 | -10 | 13 | -10 | 4.34 | 69.35 | 55.02 | 279.14 | 0.8297 | -922.5 | 999999 | |
| 11 | -10 | 10 | -10 | 4.77 | 68.86 | 54.53 | 279.75 | 0.8257 | -1102.1 | 999999 | |
| 9 | -10 | 8 | -10 | 5.28 | 68.53 | 54.19 | 280.44 | 0.8234 | -953.3 | 999999 | |
| 0 | 5 | 0 | 4 | 5.78 | 68.33 | 54.00 | 281.08 | 0.8224 | -635.0 | -506.1 | |
| 20 | 104 | 17 | 89 | 6.45 | 67.97 | 53.64 | 281.97 | 0.8202 | -1087.6 | -409.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
