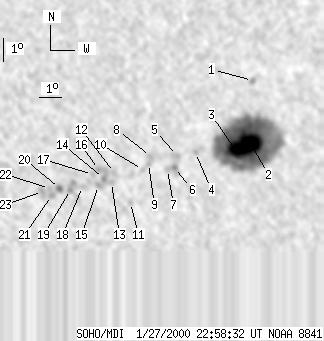

SOHO MDI 2000-01-27 22:58:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60 | 552 | 33 | 304 | -29.37 | 21.89 | 8.75 | 198.20 | 0.4286 | -1613.6 | -370.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-27 22:58:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -26.38 | 23.37 | 10.23 | 204.12 | 0.3911 | 717.0 | 458.6 | |
| 60 | 426 | 33 | 233 | -28.94 | 23.52 | 10.39 | 201.68 | 0.4290 | -1917.0 | -693.0 | |
| -2 | -2 | -2 | -2 | -29.24 | 22.89 | 9.75 | 200.20 | 0.4297 | 999999 | 999999 | |
| 0 | 4 | 0 | 2 | -29.39 | 21.12 | 7.98 | 196.69 | 0.4232 | -582.0 | -459.5 | |
| 0 | 7 | 0 | 4 | -29.53 | 20.33 | 7.19 | 195.04 | 0.4218 | 761.0 | 710.2 | |
| 0 | 11 | 0 | 6 | -30.03 | 20.23 | 7.10 | 194.50 | 0.4291 | 954.0 | 668.5 | |
| 0 | 4 | 0 | 2 | -30.12 | 19.93 | 6.79 | 193.85 | 0.4292 | 511.0 | 452.4 | |
| 0 | 5 | 0 | 3 | -29.58 | 19.14 | 6.00 | 192.61 | 0.4181 | 904.0 | 677.2 | |
| 0 | 3 | 0 | 2 | -29.88 | 19.07 | 5.93 | 192.30 | 0.4224 | 830.0 | 689.6 | |
| 0 | 4 | 0 | 2 | -30.13 | 18.81 | 5.68 | 191.65 | 0.4255 | 567.0 | 431.4 | |
| 0 | 4 | 0 | 2 | -31.53 | 18.36 | 5.22 | 190.06 | 0.4458 | 593.0 | 492.4 | |
| 0 | 3 | 0 | 2 | -30.27 | 17.58 | 4.44 | 189.11 | 0.4241 | 645.0 | 671.8 | |
| 0 | 5 | 0 | 3 | -30.69 | 17.46 | 4.32 | 188.70 | 0.4304 | 750.0 | 657.9 | |
| 0 | 6 | 0 | 3 | -30.53 | 17.10 | 3.96 | 188.04 | 0.4270 | 1151.0 | 926.9 | |
| 0 | 7 | 0 | 4 | -30.82 | 16.89 | 3.75 | 187.51 | 0.4312 | 787.0 | 722.8 | |
| 0 | 14 | 0 | 8 | -30.15 | 16.86 | 3.72 | 187.71 | 0.4205 | 806.0 | 835.6 | |
| 0 | 3 | 0 | 2 | -30.36 | 16.60 | 3.46 | 187.10 | 0.4233 | 861.0 | 716.1 | |
| 0 | 5 | 0 | 3 | -30.87 | 16.17 | 3.04 | 186.08 | 0.4306 | 805.0 | 720.0 | |
| 0 | 12 | 0 | 6 | -31.00 | 15.64 | 2.50 | 184.99 | 0.4318 | 925.0 | 773.2 | |
| 0 | 8 | 0 | 4 | -30.96 | 15.15 | 2.01 | 184.02 | 0.4306 | 1169.0 | 863.2 | |
| 0 | 5 | 0 | 3 | -31.26 | 14.79 | 1.66 | 183.27 | 0.4349 | 920.0 | 723.4 | |
| 0 | 1 | 0 | 1 | -30.96 | 14.70 | 1.56 | 183.13 | 0.4301 | 1031.0 | 1016.4 | |
| 0 | 10 | 0 | 6 | -31.09 | 14.39 | 1.25 | 182.49 | 0.4319 | 1072.0 | 812.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
