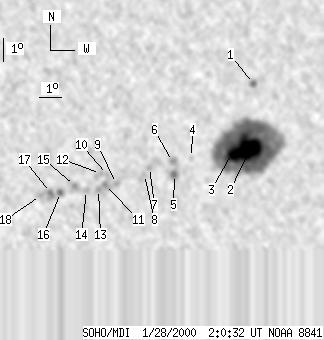

SOHO MDI 2000-01-28 02:00:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67 | 531 | 37 | 293 | -29.30 | 21.98 | 10.51 | 201.54 | 0.4363 | -1645.9 | -408.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-28 02:00:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 7 | 0 | 4 | -26.32 | 23.26 | 11.79 | 207.31 | 0.4011 | 727.0 | 448.5 | |
| 67 | 427 | 37 | 235 | -28.97 | 23.42 | 11.95 | 204.50 | 0.4388 | -1860.7 | -683.4 | |
| -2 | -2 | -2 | -2 | -29.23 | 22.60 | 11.13 | 202.76 | 0.4374 | 999999 | 999999 | |
| 0 | 3 | 0 | 2 | -29.43 | 20.84 | 9.37 | 199.32 | 0.4303 | -378.0 | -365.2 | |
| 0 | 10 | 0 | 5 | -30.15 | 20.14 | 8.67 | 197.41 | 0.4375 | 1009.0 | 744.8 | |
| 0 | 7 | 0 | 4 | -29.61 | 20.01 | 8.53 | 197.59 | 0.4288 | 821.0 | 791.6 | |
| 0 | 5 | 0 | 3 | -29.87 | 19.00 | 7.53 | 195.46 | 0.4283 | 858.0 | 697.7 | |
| 0 | 10 | 0 | 5 | -30.17 | 18.80 | 7.33 | 194.86 | 0.4319 | 673.0 | 507.6 | |
| 0 | 5 | 0 | 3 | -30.56 | 17.58 | 6.11 | 192.25 | 0.4334 | 765.0 | 658.9 | |
| 0 | 7 | 0 | 4 | -30.19 | 17.15 | 5.68 | 191.63 | 0.4262 | 936.0 | 791.6 | |
| 0 | 8 | 0 | 5 | -30.61 | 17.09 | 5.62 | 191.28 | 0.4325 | 931.0 | 856.6 | |
| 0 | 8 | 0 | 5 | -30.15 | 16.84 | 5.37 | 191.03 | 0.4246 | 871.0 | 701.3 | |
| 0 | 4 | 0 | 2 | -30.83 | 16.79 | 5.31 | 190.58 | 0.4349 | 935.0 | 771.7 | |
| 0 | 4 | 0 | 2 | -30.87 | 16.25 | 4.78 | 189.52 | 0.4342 | 829.0 | 795.5 | |
| 0 | 6 | 0 | 3 | -30.66 | 15.71 | 4.23 | 188.54 | 0.4296 | 1027.0 | 783.8 | |
| 0 | 7 | 0 | 4 | -30.96 | 15.09 | 3.62 | 187.21 | 0.4330 | 1165.0 | 845.5 | |
| 0 | 9 | 0 | 5 | -30.97 | 14.64 | 3.17 | 186.33 | 0.4322 | 1266.0 | 965.8 | |
| 0 | 4 | 0 | 2 | -31.10 | 14.20 | 2.73 | 185.42 | 0.4335 | 967.0 | 902.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
