SOHO MDI 2000-01-28 04:01:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62 | 527 | 34 | 291 | -29.32 | 22.07 | 11.71 | 203.66 | 0.4441 | -1548.1 | -450.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-28 04:01:32 UT |

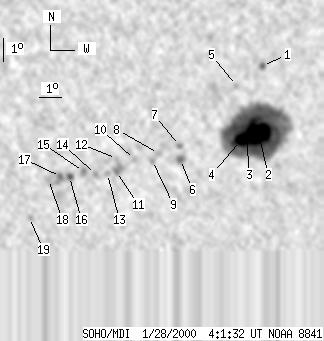

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -26.22 | 23.19 | 12.82 | 209.39 | 0.4075 | 549.0 | 359.8 | |
| 45 | 426 | 25 | 236 | -29.04 | 23.35 | 12.98 | 206.21 | 0.4466 | -1825.7 | -724.4 | |
| 6 | -2 | 3 | -2 | -29.17 | 22.82 | 12.46 | 205.17 | 0.4449 | -2146.4 | 999999 | |
| 9 | -2 | 5 | -2 | -29.34 | 22.58 | 12.21 | 204.55 | 0.4457 | -1755.3 | 999999 | |
| 0 | 4 | 0 | 2 | -27.07 | 22.14 | 11.77 | 206.35 | 0.4112 | 447.0 | 266.0 | |
| 0 | 10 | 0 | 5 | -30.19 | 19.97 | 9.61 | 199.11 | 0.4425 | 1017.0 | 791.9 | |
| 0 | 5 | 0 | 3 | -29.60 | 19.87 | 9.51 | 199.43 | 0.4334 | 824.0 | 669.0 | |
| 0 | 5 | 0 | 3 | -29.95 | 18.96 | 8.60 | 197.44 | 0.4341 | 843.0 | 698.9 | |
| 0 | 4 | 0 | 2 | -30.25 | 18.72 | 8.36 | 196.75 | 0.4374 | 750.0 | 534.2 | |
| 0 | 4 | 0 | 2 | -30.22 | 17.91 | 7.55 | 195.25 | 0.4334 | 589.0 | 623.8 | |
| 0 | 13 | 0 | 7 | -30.73 | 17.14 | 6.78 | 193.45 | 0.4382 | 1044.0 | 846.9 | |
| 0 | 5 | 0 | 3 | -30.18 | 17.11 | 6.74 | 193.72 | 0.4297 | 792.0 | 680.5 | |
| 0 | 5 | 0 | 3 | -30.82 | 16.75 | 6.38 | 192.64 | 0.4382 | 975.0 | 754.3 | |
| 0 | 5 | 0 | 3 | -30.87 | 16.21 | 5.85 | 191.59 | 0.4371 | 984.0 | 816.5 | |
| 0 | 8 | 0 | 4 | -30.75 | 15.67 | 5.30 | 190.60 | 0.4336 | 971.0 | 809.4 | |
| 2 | 6 | 1 | 3 | -30.96 | 15.05 | 4.68 | 189.30 | 0.4353 | 1034.5 | 776.4 | |
| 0 | 10 | 0 | 5 | -30.97 | 14.65 | 4.28 | 188.51 | 0.4344 | 1366.0 | 1000.3 | |
| 0 | 9 | 0 | 5 | -31.10 | 14.11 | 3.75 | 187.42 | 0.4352 | 860.0 | 691.5 | |
| 0 | 3 | 0 | 2 | -32.73 | 13.31 | 2.95 | 185.43 | 0.4592 | 701.0 | 566.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
