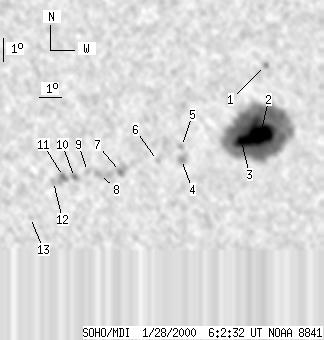

SOHO MDI 2000-01-28 06:02:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56 | 519 | 31 | 289 | -29.41 | 21.86 | 12.61 | 205.11 | 0.4509 | -1703.6 | -467.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-28 06:02:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 5 | 0 | 3 | -26.21 | 23.12 | 13.87 | 211.31 | 0.4155 | 582.0 | 356.8 | |
| 56 | 432 | 31 | 240 | -29.06 | 23.27 | 14.02 | 207.91 | 0.4542 | -1885.5 | -710.2 | |
| -2 | -2 | -2 | -2 | -29.33 | 22.45 | 13.19 | 206.24 | 0.4520 | 999999 | 999999 | |
| 0 | 9 | 0 | 5 | -30.18 | 19.85 | 10.59 | 200.89 | 0.4475 | 893.0 | 724.4 | |
| 0 | 5 | 0 | 3 | -29.63 | 19.79 | 10.53 | 201.29 | 0.4394 | 695.0 | 542.6 | |
| 0 | 5 | 0 | 3 | -30.24 | 18.77 | 9.52 | 198.91 | 0.4427 | 787.0 | 628.9 | |
| 0 | 13 | 0 | 7 | -30.73 | 17.15 | 7.90 | 195.55 | 0.4424 | 1068.0 | 816.5 | |
| 0 | 20 | 0 | 11 | -30.86 | 16.22 | 6.96 | 193.71 | 0.4408 | 1049.0 | 769.4 | |
| 0 | 5 | 0 | 3 | -30.74 | 15.67 | 6.41 | 192.75 | 0.4370 | 874.0 | 868.2 | |
| 0 | 5 | 0 | 3 | -31.00 | 15.10 | 5.85 | 191.52 | 0.4391 | 925.0 | 734.4 | |
| 0 | 11 | 0 | 6 | -30.96 | 14.61 | 5.35 | 190.59 | 0.4370 | 1247.0 | 868.7 | |
| 0 | 5 | 0 | 3 | -31.18 | 14.17 | 4.91 | 189.65 | 0.4391 | 731.0 | 689.5 | |
| 0 | 4 | 0 | 2 | -32.73 | 13.20 | 3.95 | 187.25 | 0.4608 | 605.0 | 426.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
