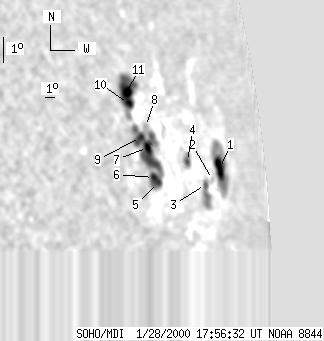

SOHO MDI 2000-01-28 17:56:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52 | 327 | 78 | 483 | 4.41 | 72.41 | 69.69 | 276.80 | 0.9408 | -299.1 | -96.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-28 17:56:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17 | 77 | 33 | 153 | 4.28 | 77.61 | 74.89 | 275.94 | 0.9691 | 19.5 | -38.4 | |
| 0 | 2 | 0 | 4 | 3.75 | 76.46 | 73.74 | 275.53 | 0.9637 | 182.0 | 186.0 | |
| 0 | 28 | 0 | 48 | 3.45 | 75.45 | 72.73 | 275.36 | 0.9587 | 344.0 | 357.0 | |
| 1 | 12 | 2 | 18 | 4.15 | 73.36 | 70.63 | 276.36 | 0.9482 | 499.3 | 381.4 | |
| 3 | 128 | 4 | 163 | 3.02 | 70.02 | 67.30 | 275.62 | 0.9274 | -349.9 | -201.0 | |
| 5 | -5 | 6 | -5 | 3.17 | 69.54 | 66.82 | 275.85 | 0.9244 | -484.6 | 999999 | |
| 6 | -5 | 8 | -5 | 4.29 | 69.13 | 66.40 | 277.12 | 0.9226 | -410.4 | 999999 | |
| 0 | 4 | 0 | 5 | 5.11 | 69.09 | 66.37 | 278.00 | 0.9232 | 145.0 | 112.2 | |
| 4 | -5 | 5 | -5 | 4.63 | 68.52 | 65.79 | 277.57 | 0.9188 | -609.7 | 999999 | |
| 5 | 76 | 6 | 92 | 5.87 | 67.65 | 64.92 | 279.06 | 0.9142 | -682.2 | -363.3 | |
| 11 | -10 | 14 | -10 | 6.29 | 67.56 | 64.84 | 279.53 | 0.9140 | -753.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
