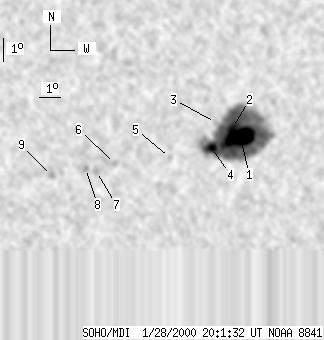

SOHO MDI 2000-01-28 20:01:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63 | 408 | 37 | 235 | -29.36 | 22.24 | 20.66 | 217.04 | 0.5125 | -1558.4 | -514.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-28 20:01:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45 | 380 | 26 | 219 | -29.24 | 22.90 | 21.32 | 218.06 | 0.5167 | -1603.7 | -591.0 | |
| 7 | -1 | 4 | -1 | -28.84 | 22.44 | 20.86 | 218.05 | 0.5081 | -1988.3 | 999999 | |
| 0 | 4 | 0 | 2 | -28.65 | 21.61 | 20.03 | 217.26 | 0.4985 | -1000.0 | -809.4 | |
| 11 | -1 | 7 | -1 | -29.70 | 21.64 | 20.06 | 215.88 | 0.5104 | -1498.9 | 999999 | |
| 0 | 3 | 0 | 2 | -30.18 | 19.77 | 18.18 | 212.81 | 0.5000 | 471.0 | 414.1 | |
| 0 | 5 | 0 | 3 | -30.50 | 17.27 | 15.69 | 208.87 | 0.4845 | 780.0 | 717.4 | |
| 0 | 6 | 0 | 3 | -30.86 | 16.50 | 14.91 | 207.31 | 0.4835 | 922.0 | 811.7 | |
| 0 | 5 | 0 | 3 | -30.74 | 15.97 | 14.39 | 206.64 | 0.4784 | 1005.0 | 758.6 | |
| 0 | 5 | 0 | 3 | -31.07 | 14.46 | 12.87 | 203.91 | 0.4729 | 877.0 | 848.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
