SOHO MDI 2000-01-29 07:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 31 | 205 | 21 | 149 | -9.33 | 307.66 | -47.35 | 97.42 | 0.7336 | -803.8 | -316.2 | |
|
previous
or next observation for the same group /

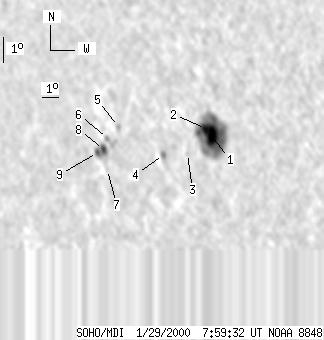

back to the solar disc SOHO MDI 2000-01-29 07:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18 | 159 | 12 | 113 | -9.38 | 309.05 | -45.96 | 97.51 | 0.7177 | -1462.3 | -553.1 | |
| 6 | -1 | 4 | -1 | -9.09 | 308.77 | -46.25 | 97.10 | 0.7211 | -948.8 | 999999 | |
| 0 | 2 | 0 | 2 | -9.97 | 307.58 | -47.43 | 98.28 | 0.7354 | -335.0 | -171.5 | |
| 0 | 7 | 0 | 5 | -9.91 | 306.19 | -48.82 | 98.15 | 0.7514 | -684.0 | -388.9 | |
| 0 | 4 | 0 | 3 | -8.64 | 303.70 | -51.31 | 96.47 | 0.7790 | 868.0 | 724.6 | |
| 0 | 12 | 0 | 10 | -9.04 | 302.93 | -52.08 | 96.99 | 0.7873 | 563.0 | 642.7 | |
| 0 | 2 | 0 | 1 | -10.22 | 302.67 | -52.34 | 98.49 | 0.7901 | 449.0 | 493.1 | |
| 5 | 19 | 4 | 15 | -9.44 | 302.59 | -52.42 | 97.50 | 0.7909 | 748.4 | 571.6 | |
| 2 | -8 | 1 | -8 | -9.52 | 302.18 | -52.83 | 97.61 | 0.7951 | 492.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
