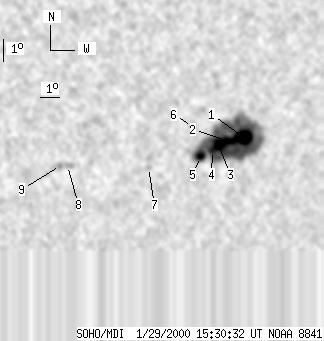

SOHO MDI 2000-01-29 15:30:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59 | 355 | 38 | 223 | -29.68 | 21.66 | 30.77 | 226.75 | 0.6124 | -1307.1 | -480.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-29 15:30:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20 | 336 | 13 | 211 | -29.36 | 22.69 | 31.81 | 228.02 | 0.6203 | -1210.2 | -531.9 | |
| 12 | -1 | 8 | -1 | -29.56 | 22.04 | 31.16 | 227.25 | 0.6151 | -1432.7 | 999999 | |
| 17 | -1 | 10 | -1 | -29.71 | 21.53 | 30.64 | 226.64 | 0.6111 | -1479.6 | 999999 | |
| 4 | -1 | 3 | -1 | -29.98 | 21.31 | 30.42 | 226.11 | 0.6110 | -1281.3 | 999999 | |
| 6 | -1 | 4 | -1 | -30.26 | 20.79 | 29.90 | 225.31 | 0.6080 | -1333.5 | 999999 | |
| 0 | 5 | 0 | 3 | -29.03 | 19.98 | 29.10 | 226.33 | 0.5901 | -113.0 | -221.0 | |
| 0 | 4 | 0 | 3 | -30.84 | 18.33 | 27.45 | 222.40 | 0.5892 | 634.0 | 480.1 | |
| 0 | 6 | 0 | 4 | -30.91 | 14.34 | 23.46 | 218.33 | 0.5529 | 836.0 | 665.4 | |
| 0 | 4 | 0 | 2 | -30.93 | 14.01 | 23.12 | 217.95 | 0.5500 | 905.0 | 785.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
