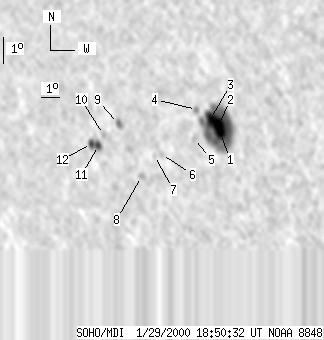

SOHO MDI 2000-01-29 18:50:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33 | 217 | 21 | 145 | -9.21 | 307.91 | -41.14 | 97.40 | 0.6567 | -894.6 | -404.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-29 18:50:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7 | 167 | 4 | 108 | -9.48 | 309.30 | -39.76 | 97.89 | 0.6392 | -1455.3 | -648.3 | |
| 10 | -1 | 6 | -1 | -9.13 | 309.24 | -39.81 | 97.34 | 0.6397 | -1636.2 | 999999 | |
| 10 | -1 | 7 | -1 | -8.88 | 308.87 | -40.19 | 96.93 | 0.6446 | -986.4 | 999999 | |
| 0 | 4 | 0 | 3 | -8.49 | 308.20 | -40.85 | 96.30 | 0.6532 | -477.0 | -362.8 | |
| 0 | 5 | 0 | 3 | -9.59 | 307.95 | -41.11 | 97.98 | 0.6570 | -252.0 | -89.0 | |
| 0 | 4 | 0 | 3 | -10.08 | 306.14 | -42.92 | 98.61 | 0.6805 | -418.0 | -393.4 | |
| 0 | 2 | 0 | 2 | -10.10 | 305.76 | -43.29 | 98.61 | 0.6852 | -202.0 | -254.9 | |
| 0 | 5 | 0 | 4 | -10.85 | 304.92 | -44.13 | 99.65 | 0.6961 | 716.0 | 556.1 | |
| 0 | 7 | 0 | 5 | -8.74 | 304.02 | -45.03 | 96.59 | 0.7063 | 916.0 | 785.8 | |
| 0 | 5 | 0 | 4 | -9.10 | 303.13 | -45.92 | 97.09 | 0.7172 | 665.0 | 568.2 | |
| 3 | 18 | 2 | 13 | -9.50 | 302.78 | -46.27 | 97.63 | 0.7215 | 763.7 | 458.5 | |
| 3 | -11 | 2 | -11 | -9.40 | 302.40 | -46.65 | 97.48 | 0.7260 | 394.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
