| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55 | 323 | 36 | 208 | -29.77 | 21.63 | 33.77 | 228.86 | 0.6430 | -1278.2 | -504.4 | |
|
previous
or next observation for the same group /

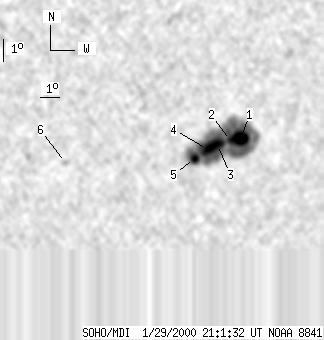

back to the solar disc SOHO MDI 2000-01-29 21:01:32 UT ![]() |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18 | 318 | 12 | 205 | -29.44 | 22.64 | 34.78 | 230.01 | 0.6509 | -1140.7 | -520.7 | |
| 4 | -1 | 3 | -1 | -29.55 | 22.15 | 34.29 | 229.53 | 0.6466 | -1147.6 | 999999 | |
| 26 | -1 | 17 | -1 | -29.75 | 21.53 | 33.68 | 228.85 | 0.6417 | -1416.5 | 999999 | |
| -3 | -1 | -3 | -1 | -29.98 | 21.09 | 33.24 | 228.22 | 0.6389 | 999999 | 999999 | |
| 7 | -1 | 4 | -1 | -30.39 | 20.56 | 32.70 | 227.29 | 0.6365 | -1295.7 | 999999 | |
| 0 | 5 | 0 | 3 | -30.86 | 14.10 | 26.25 | 221.26 | 0.5779 | 616.0 | 607.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
