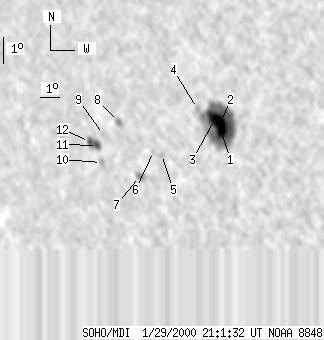

SOHO MDI 2000-01-29 21:01:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33 | 225 | 21 | 145 | -9.31 | 308.00 | -39.86 | 97.61 | 0.6399 | -1001.3 | -376.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-29 21:01:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26 | 175 | 16 | 111 | -9.45 | 309.30 | -38.55 | 97.92 | 0.6230 | -1606.1 | -610.3 | |
| -1 | -1 | -1 | -1 | -9.10 | 309.30 | -38.56 | 97.36 | 0.6229 | 999999 | 999999 | |
| -1 | -1 | -1 | -1 | -8.97 | 309.02 | -38.84 | 97.13 | 0.6266 | 999999 | 999999 | |
| 0 | 4 | 0 | 2 | -8.49 | 308.22 | -39.63 | 96.34 | 0.6371 | -437.0 | -283.8 | |
| 0 | 5 | 0 | 3 | -10.13 | 306.14 | -41.71 | 98.76 | 0.6651 | -652.0 | -474.6 | |
| 0 | 3 | 0 | 2 | -9.99 | 305.75 | -42.11 | 98.52 | 0.6701 | -364.0 | -387.8 | |
| 0 | 8 | 0 | 6 | -10.90 | 304.85 | -43.01 | 99.79 | 0.6821 | 750.0 | 615.3 | |
| 0 | 6 | 0 | 4 | -8.72 | 304.08 | -43.78 | 96.57 | 0.6908 | 888.0 | 777.0 | |
| 0 | 2 | 0 | 1 | -9.16 | 303.19 | -44.66 | 97.19 | 0.7018 | 497.0 | 569.1 | |
| 0 | 5 | 0 | 4 | -10.22 | 302.90 | -44.95 | 98.69 | 0.7058 | 689.0 | 656.7 | |
| 4 | 17 | 3 | 12 | -9.56 | 302.80 | -45.06 | 97.74 | 0.7068 | 700.3 | 497.7 | |
| 3 | -11 | 2 | -11 | -9.37 | 302.39 | -45.47 | 97.47 | 0.7118 | 446.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
