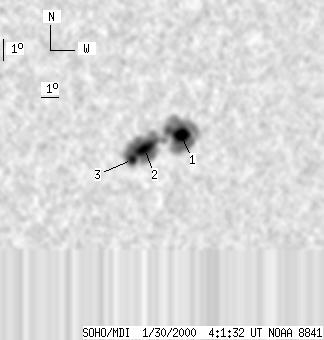

SOHO MDI 2000-01-30 04:01:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 42 | 261 | 28 | 176 | -29.94 | 21.48 | 37.46 | 230.98 | 0.6808 | -1229.4 | -536.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-30 04:01:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18 | 261 | 12 | 176 | -29.49 | 22.56 | 38.54 | 232.19 | 0.6889 | -1104.8 | -536.5 | |
| 18 | -1 | 12 | -1 | -30.15 | 20.78 | 36.77 | 230.31 | 0.6750 | -1326.7 | 999999 | |
| 6 | -1 | 4 | -1 | -30.64 | 20.33 | 36.32 | 229.39 | 0.6736 | -1311.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
