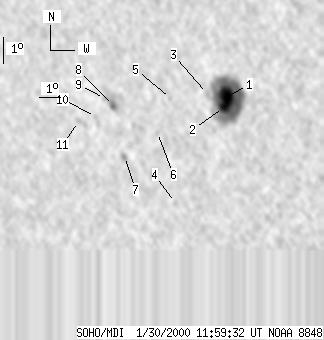

SOHO MDI 2000-01-30 11:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 30 | 246 | 18 | 144 | -9.03 | 308.31 | -31.33 | 97.81 | 0.5200 | -1566.9 | -378.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-30 11:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 24 | 187 | 14 | 107 | -8.81 | 309.63 | -30.01 | 97.53 | 0.5006 | -1840.9 | -644.6 | |
| 6 | -1 | 4 | -1 | -9.22 | 309.45 | -30.19 | 98.33 | 0.5037 | -1394.0 | 999999 | |
| 0 | 4 | 0 | 3 | -8.65 | 308.79 | -30.85 | 97.12 | 0.5131 | -109.0 | -244.1 | |
| 0 | 3 | 0 | 2 | -12.75 | 306.83 | -32.81 | 104.46 | 0.5479 | -596.0 | -479.0 | |
| 0 | 2 | 0 | 1 | -8.75 | 307.09 | -32.55 | 97.15 | 0.5381 | -321.0 | -490.5 | |
| 0 | 3 | 0 | 2 | -10.02 | 306.35 | -33.29 | 99.39 | 0.5501 | -528.0 | -534.6 | |
| 0 | 7 | 0 | 4 | -10.86 | 304.69 | -34.95 | 100.62 | 0.5747 | 573.0 | 380.5 | |
| 0 | 12 | 0 | 7 | -8.87 | 304.41 | -35.23 | 97.14 | 0.5767 | 889.0 | 736.3 | |
| 0 | 11 | 0 | 7 | -8.58 | 304.01 | -35.63 | 96.60 | 0.5821 | 867.0 | 869.7 | |
| 0 | 8 | 0 | 5 | -9.24 | 303.50 | -36.14 | 97.70 | 0.5897 | 316.0 | 475.1 | |
| 0 | 9 | 0 | 6 | -9.39 | 302.66 | -36.98 | 97.87 | 0.6014 | 532.0 | 421.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
