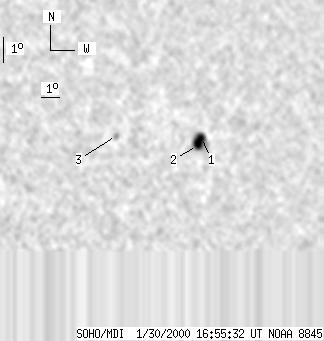

SOHO MDI 2000-01-30 16:55:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14 | 37 | 9 | 26 | -16.20 | 20.79 | 43.86 | 252.70 | 0.6991 | -953.4 | -416.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-30 16:55:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14 | 34 | 9 | 24 | -16.04 | 21.20 | 44.27 | 253.03 | 0.7038 | -960.3 | -409.7 | |
| -1 | -1 | -1 | -1 | -16.36 | 21.07 | 44.14 | 252.55 | 0.7028 | 999999 | 999999 | |
| 0 | 3 | 0 | 2 | -16.26 | 16.68 | 39.75 | 251.68 | 0.6490 | -644.0 | -496.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
