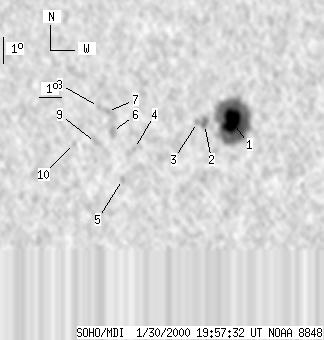

SOHO MDI 2000-01-30 19:57:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36 | 236 | 20 | 132 | -8.89 | 308.73 | -26.54 | 98.20 | 0.4476 | -1554.6 | -444.3 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-30 19:57:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36 | 184 | 20 | 101 | -8.81 | 309.77 | -25.50 | 98.21 | 0.4316 | -1721.6 | -656.6 | |
| 0 | 10 | 0 | 6 | -8.92 | 308.59 | -26.67 | 98.22 | 0.4500 | -816.0 | -700.9 | |
| 0 | 4 | 0 | 2 | -8.83 | 308.30 | -26.97 | 97.96 | 0.4544 | -524.0 | -447.7 | |
| 0 | 3 | 0 | 2 | -9.69 | 305.43 | -29.83 | 99.28 | 0.4989 | -136.0 | -179.3 | |
| 0 | 5 | 0 | 3 | -10.85 | 304.77 | -30.50 | 101.44 | 0.5106 | 443.0 | 287.0 | |
| 0 | 10 | 0 | 6 | -8.99 | 304.51 | -30.75 | 97.75 | 0.5118 | 1027.0 | 820.4 | |
| 0 | 5 | 0 | 3 | -8.21 | 304.36 | -30.91 | 96.21 | 0.5135 | 787.0 | 729.0 | |
| 0 | 3 | 0 | 2 | -8.00 | 303.97 | -31.30 | 95.77 | 0.5192 | 723.0 | 596.5 | |
| 0 | 9 | 0 | 5 | -9.37 | 303.70 | -31.56 | 98.38 | 0.5242 | 746.0 | 660.2 | |
| 0 | 3 | 0 | 2 | -9.36 | 302.74 | -32.53 | 98.23 | 0.5382 | 461.0 | 330.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
