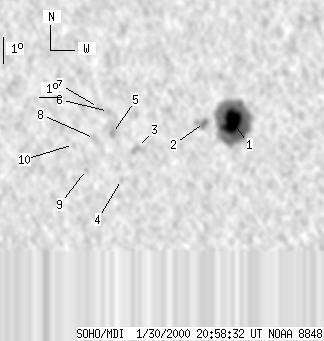

SOHO MDI 2000-01-30 20:58:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32 | 230 | 17 | 127 | -8.90 | 308.94 | -25.77 | 98.33 | 0.4358 | -1541.2 | -527.4 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-30 20:58:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32 | 185 | 17 | 101 | -8.81 | 309.82 | -24.89 | 98.30 | 0.4222 | -1738.7 | -677.6 | |
| 0 | 13 | 0 | 7 | -8.79 | 308.61 | -26.09 | 98.03 | 0.4409 | -895.0 | -689.6 | |
| 0 | 8 | 0 | 5 | -9.61 | 305.60 | -29.10 | 99.25 | 0.4879 | -508.0 | -303.4 | |
| 0 | 4 | 0 | 2 | -10.80 | 304.77 | -29.94 | 101.47 | 0.5023 | 362.0 | 325.4 | |
| 0 | 6 | 0 | 3 | -9.02 | 304.54 | -30.17 | 97.88 | 0.5031 | 1060.0 | 834.5 | |
| 0 | 1 | 0 | 1 | -8.17 | 304.44 | -30.27 | 96.18 | 0.5040 | 883.0 | 856.0 | |
| 0 | 3 | 0 | 2 | -7.99 | 304.00 | -30.71 | 95.80 | 0.5104 | 412.0 | 535.5 | |
| 0 | 4 | 0 | 2 | -9.17 | 303.71 | -30.99 | 98.07 | 0.5156 | 602.0 | 466.6 | |
| 0 | 3 | 0 | 2 | -10.34 | 303.23 | -31.48 | 100.24 | 0.5242 | 565.0 | 567.3 | |
| 0 | 3 | 0 | 2 | -9.35 | 302.74 | -31.97 | 98.29 | 0.5301 | 434.0 | 327.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
