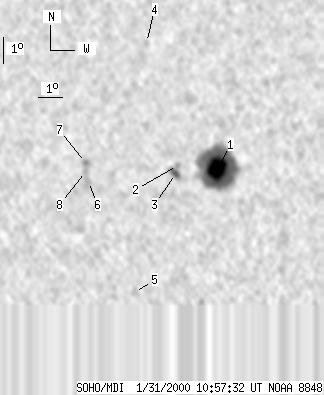

SOHO MDI 2000-01-31 10:57:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39 | 249 | 20 | 131 | -8.86 | 309.41 | -17.62 | 100.67 | 0.3060 | -1754.4 | -529.2 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-31 10:57:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36 | 202 | 19 | 105 | -8.79 | 310.16 | -16.87 | 100.78 | 0.2933 | -1918.8 | -683.3 | |
| 0 | 5 | 0 | 2 | -8.62 | 308.54 | -18.49 | 99.53 | 0.3194 | -779.0 | -561.1 | |
| 3 | 11 | 1 | 6 | -8.93 | 308.44 | -18.59 | 100.43 | 0.3217 | -998.6 | -732.3 | |
| 0 | 3 | 0 | 2 | -3.87 | 307.45 | -19.58 | 84.94 | 0.3372 | -431.0 | -473.3 | |
| 0 | 7 | 0 | 4 | -13.44 | 306.42 | -20.61 | 111.89 | 0.3706 | -415.0 | -362.2 | |
| 0 | 11 | 0 | 6 | -9.11 | 304.83 | -22.21 | 99.63 | 0.3802 | 947.0 | 814.6 | |
| 0 | 5 | 0 | 3 | -8.37 | 304.75 | -22.29 | 97.69 | 0.3803 | 1044.0 | 938.7 | |
| 0 | 5 | 0 | 3 | -8.72 | 304.72 | -22.31 | 98.59 | 0.3811 | 943.0 | 874.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
