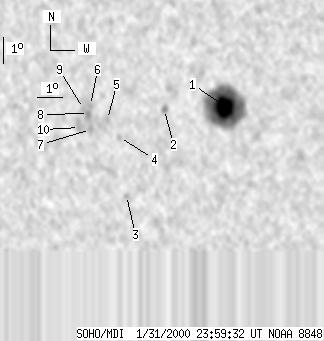

SOHO MDI 2000-01-31 23:59:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32 | 250 | 16 | 128 | -8.90 | 309.43 | -10.45 | 106.80 | 0.1877 | -1801.6 | -485.1 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-01-31 23:59:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 32 | 200 | 16 | 101 | -8.77 | 310.46 | -9.42 | 107.38 | 0.1702 | -2047.4 | -739.5 | |
| 0 | 6 | 0 | 3 | -8.84 | 308.09 | -11.79 | 104.61 | 0.2096 | -724.0 | -514.7 | |
| 0 | 3 | 0 | 2 | -12.11 | 306.44 | -13.44 | 115.86 | 0.2537 | -843.0 | -698.8 | |
| 0 | 3 | 0 | 2 | -9.87 | 306.26 | -13.62 | 107.10 | 0.2438 | -434.0 | -350.1 | |
| 0 | 5 | 0 | 3 | -9.17 | 305.81 | -14.07 | 103.88 | 0.2483 | 782.0 | 752.0 | |
| 0 | 5 | 0 | 2 | -8.62 | 305.15 | -14.73 | 101.24 | 0.2574 | 986.0 | 814.6 | |
| 0 | 6 | 0 | 3 | -9.54 | 305.11 | -14.77 | 104.71 | 0.2611 | 1088.0 | 974.1 | |
| 0 | 8 | 0 | 4 | -8.92 | 305.06 | -14.82 | 102.34 | 0.2599 | 949.0 | 900.9 | |
| 0 | 3 | 0 | 2 | -8.72 | 304.86 | -15.01 | 101.47 | 0.2625 | 786.0 | 745.9 | |
| 0 | 11 | 0 | 6 | -9.45 | 304.67 | -15.20 | 104.03 | 0.2679 | 860.0 | 722.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
