SOHO MDI 2000-02-01 05:58:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26 | 118 | 30 | 136 | -30.27 | 20.55 | 63.96 | 239.21 | 0.9049 | -592.0 | -245.9 | |
|
previous
or next observation for the same group /

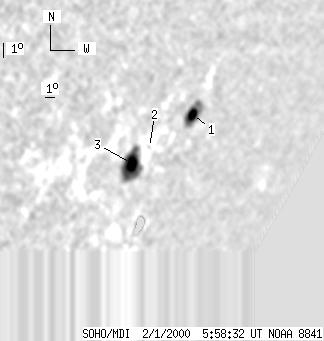

back to the solar disc SOHO MDI 2000-02-01 05:58:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10 | 43 | 12 | 52 | -28.77 | 22.61 | 66.02 | 241.12 | 0.9164 | -421.2 | -163.6 | |
| 0 | 2 | 0 | 2 | -30.43 | 20.13 | 63.54 | 239.00 | 0.9024 | -155.0 | -80.5 | |
| 16 | 73 | 18 | 82 | -31.21 | 19.26 | 62.67 | 238.01 | 0.8977 | -710.8 | -302.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
