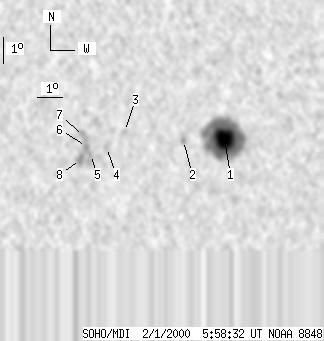

SOHO MDI 2000-02-01 05:58:32 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33 | 252 | 17 | 126 | -8.80 | 309.59 | -7.00 | 113.62 | 0.1314 | -1883.6 | -451.7 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-02-01 05:58:32 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33 | 202 | 17 | 101 | -8.76 | 310.58 | -6.01 | 115.46 | 0.1152 | -2078.7 | -721.6 | |
| 0 | 4 | 0 | 2 | -8.81 | 308.98 | -7.61 | 111.14 | 0.1410 | -628.0 | -416.2 | |
| 0 | 4 | 0 | 2 | -8.43 | 306.67 | -9.92 | 104.67 | 0.1770 | -678.0 | -546.8 | |
| 0 | 6 | 0 | 3 | -9.03 | 305.95 | -10.65 | 106.86 | 0.1915 | 710.0 | 714.8 | |
| 0 | 7 | 0 | 3 | -9.29 | 305.30 | -11.29 | 107.25 | 0.2032 | 1097.0 | 1008.8 | |
| 0 | 6 | 0 | 3 | -8.98 | 305.16 | -11.43 | 105.59 | 0.2042 | 813.0 | 904.4 | |
| 0 | 14 | 0 | 7 | -8.59 | 305.05 | -11.54 | 103.63 | 0.2045 | 897.0 | 721.6 | |
| 0 | 9 | 0 | 5 | -9.47 | 304.90 | -11.69 | 107.59 | 0.2106 | 1190.0 | 992.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
