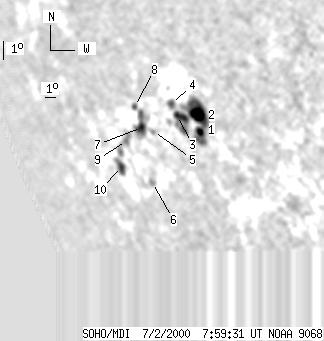

SOHO MDI 2000-07-02 07:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 27 | 239 | 28 | 264 | -18.99 | 48.29 | -60.36 | 113.11 | 0.8939 | -399.7 | -17.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-02 07:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4 | 99 | 4 | 100 | -19.04 | 51.18 | -57.47 | 113.90 | 0.8737 | -282.4 | -395.9 | |
| 16 | -1 | 16 | -1 | -18.31 | 51.33 | -57.31 | 113.14 | 0.8709 | -884.7 | 999999 | |
| 2 | 40 | 2 | 42 | -18.43 | 49.67 | -58.97 | 112.82 | 0.8839 | -170.1 | -12.8 | |
| 0 | 10 | 0 | 10 | -17.94 | 49.46 | -59.19 | 112.22 | 0.8846 | 167.0 | 55.3 | |
| 0 | 4 | 0 | 5 | -19.23 | 47.15 | -61.49 | 113.06 | 0.9036 | 314.0 | 261.0 | |
| 0 | 7 | 0 | 8 | -21.50 | 45.44 | -63.21 | 115.08 | 0.9187 | -97.0 | 25.9 | |
| 5 | 33 | 6 | 40 | -19.11 | 46.15 | -62.50 | 112.70 | 0.9102 | 606.7 | 433.1 | |
| 0 | 5 | 0 | 6 | -18.23 | 46.09 | -62.55 | 111.73 | 0.9092 | 305.0 | 274.1 | |
| 0 | 25 | 0 | 32 | -19.76 | 44.26 | -64.38 | 112.96 | 0.9233 | 551.0 | 368.6 | |
| 0 | 16 | 0 | 21 | -20.95 | 42.80 | -65.85 | 113.90 | 0.9336 | 333.0 | 126.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
