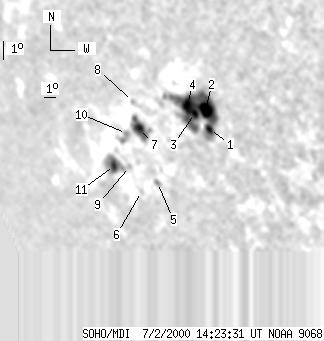

SOHO MDI 2000-07-02 14:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 55 | 319 | 52 | 313 | -19.05 | 48.58 | -56.54 | 114.23 | 0.8650 | -323.7 | -86.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-02 14:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6 | 215 | 5 | 197 | -19.10 | 51.43 | -53.69 | 115.14 | 0.8432 | -318.5 | -263.5 | |
| 16 | -1 | 14 | -1 | -18.29 | 51.52 | -53.60 | 114.24 | 0.8402 | -1015.2 | 999999 | |
| 6 | -1 | 5 | -1 | -18.46 | 50.65 | -54.46 | 114.16 | 0.8480 | -435.2 | 999999 | |
| 12 | -1 | 11 | -1 | -18.10 | 50.32 | -54.80 | 113.64 | 0.8499 | -454.9 | 999999 | |
| 0 | 6 | 0 | 6 | -21.63 | 46.00 | -59.11 | 116.29 | 0.8917 | -270.0 | -274.4 | |
| 0 | 2 | 0 | 2 | -22.11 | 44.29 | -60.82 | 116.33 | 0.9044 | 297.0 | 291.8 | |
| 8 | 41 | 9 | 44 | -19.32 | 45.96 | -59.15 | 113.76 | 0.8871 | 633.9 | 366.7 | |
| 0 | 3 | 0 | 3 | -18.17 | 46.05 | -59.07 | 112.53 | 0.8842 | 349.0 | 394.6 | |
| 0 | 3 | 0 | 4 | -21.04 | 44.00 | -61.12 | 115.12 | 0.9044 | 480.0 | 431.6 | |
| 0 | 12 | 0 | 13 | -19.59 | 44.70 | -60.41 | 113.73 | 0.8968 | -197.0 | 241.6 | |
| 7 | 37 | 8 | 44 | -21.07 | 42.62 | -62.50 | 114.80 | 0.9135 | -1.3 | 82.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
