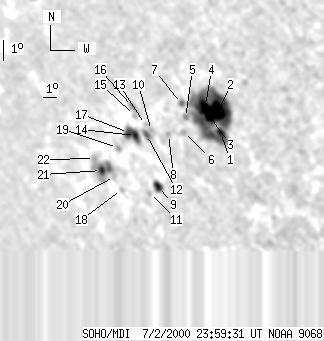

SOHO MDI 2000-07-02 23:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61 | 422 | 55 | 363 | -19.05 | 48.87 | -50.94 | 116.10 | 0.8175 | -445.1 | -145.6 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-02 23:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5 | 269 | 4 | 217 | -19.09 | 51.62 | -48.19 | 117.15 | 0.7939 | -628.3 | -392.6 | |
| 17 | -1 | 14 | -1 | -18.14 | 51.86 | -47.96 | 116.12 | 0.7883 | -1324.7 | 999999 | |
| 14 | -1 | 11 | -1 | -18.34 | 51.15 | -48.67 | 116.08 | 0.7958 | -883.1 | 999999 | |
| -3 | -1 | -3 | -1 | -17.96 | 51.10 | -48.72 | 115.61 | 0.7949 | 999999 | 999999 | |
| 0 | 4 | 0 | 4 | -18.54 | 49.59 | -50.23 | 115.72 | 0.8110 | -113.0 | -202.9 | |
| 0 | 5 | 0 | 4 | -19.19 | 49.18 | -50.63 | 116.33 | 0.8168 | -229.0 | -55.3 | |
| 0 | 7 | 0 | 6 | -17.95 | 49.56 | -50.26 | 115.01 | 0.8094 | 85.0 | 154.4 | |
| 0 | 4 | 0 | 3 | -19.33 | 48.12 | -51.70 | 116.10 | 0.8268 | -18.0 | 41.5 | |
| 7 | 13 | 7 | 12 | -21.65 | 46.27 | -53.55 | 118.08 | 0.8494 | -404.5 | -248.4 | |
| 0 | 4 | 0 | 4 | -19.21 | 47.00 | -52.82 | 115.57 | 0.8362 | 719.0 | 631.4 | |
| 0 | 4 | 0 | 4 | -21.99 | 45.43 | -54.39 | 118.17 | 0.8572 | 165.0 | 73.2 | |
| 2 | 9 | 2 | 8 | -19.40 | 46.56 | -53.26 | 115.64 | 0.8405 | 676.0 | 616.7 | |
| 0 | 2 | 0 | 2 | -18.97 | 46.69 | -53.13 | 115.19 | 0.8382 | 528.0 | 478.7 | |
| 6 | 29 | 6 | 27 | -19.48 | 45.73 | -54.08 | 115.46 | 0.8477 | 664.3 | 379.1 | |
| 0 | 3 | 0 | 3 | -18.61 | 46.08 | -53.74 | 114.59 | 0.8425 | 513.0 | 542.8 | |
| 0 | 8 | 0 | 7 | -18.23 | 46.11 | -53.71 | 114.16 | 0.8412 | 780.0 | 536.5 | |
| 5 | -14 | 5 | -14 | -19.37 | 45.28 | -54.54 | 115.19 | 0.8512 | 242.5 | 999999 | |
| 0 | 4 | 0 | 4 | -21.92 | 43.35 | -56.47 | 117.41 | 0.8731 | 647.0 | 552.7 | |
| 0 | 6 | 0 | 6 | -20.07 | 44.10 | -55.72 | 115.60 | 0.8626 | 555.0 | 468.8 | |
| 0 | 5 | 0 | 5 | -21.36 | 43.14 | -56.68 | 116.73 | 0.8733 | 532.0 | 455.2 | |
| 5 | 40 | 6 | 41 | -21.15 | 42.24 | -57.58 | 116.23 | 0.8795 | 103.0 | 109.9 | |
| 0 | 6 | 0 | 6 | -20.64 | 41.99 | -57.83 | 115.60 | 0.8803 | -172.0 | -141.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
