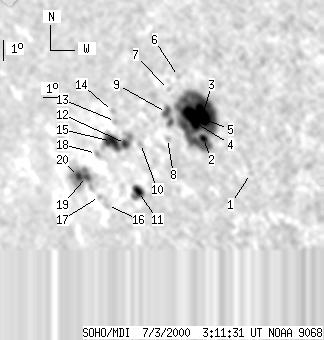

SOHO MDI 2000-07-03 03:11:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86 | 480 | 71 | 400 | -19.10 | 48.67 | -49.39 | 116.76 | 0.8035 | -462.7 | -140.0 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-03 03:11:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0 | 3 | 0 | 2 | -20.49 | 53.91 | -44.14 | 120.66 | 0.7607 | -452.0 | -336.9 | |
| 4 | 278 | 3 | 217 | -19.09 | 51.60 | -46.45 | 117.89 | 0.7773 | -666.1 | -439.1 | |
| 19 | -2 | 14 | -2 | -18.10 | 51.89 | -46.16 | 116.82 | 0.7706 | -1425.6 | 999999 | |
| 31 | -2 | 24 | -2 | -18.42 | 51.29 | -46.76 | 116.96 | 0.7777 | -844.1 | 999999 | |
| -4 | -2 | -4 | -2 | -18.08 | 51.23 | -46.83 | 116.52 | 0.7771 | 999999 | 999999 | |
| 0 | 3 | 0 | 3 | -16.49 | 50.97 | -47.09 | 114.48 | 0.7739 | -727.0 | -634.2 | |
| 0 | 3 | 0 | 2 | -17.07 | 50.16 | -47.90 | 114.87 | 0.7840 | -253.0 | -290.6 | |
| 0 | 3 | 0 | 3 | -19.18 | 49.31 | -48.74 | 117.06 | 0.7995 | -359.0 | -249.1 | |
| 0 | 27 | 0 | 22 | -18.06 | 49.68 | -48.37 | 115.87 | 0.7920 | 330.0 | -40.9 | |
| 0 | 5 | 0 | 4 | -19.48 | 47.43 | -50.62 | 116.68 | 0.8178 | 424.0 | 540.9 | |
| 8 | 22 | 8 | 20 | -21.59 | 46.30 | -51.75 | 118.68 | 0.8345 | -577.6 | -206.6 | |
| 4 | 53 | 3 | 48 | -19.53 | 46.40 | -51.66 | 116.35 | 0.8271 | 831.8 | 543.7 | |
| 0 | 3 | 0 | 3 | -18.60 | 46.13 | -51.93 | 115.19 | 0.8267 | 652.0 | 556.4 | |
| 0 | 4 | 0 | 3 | -18.18 | 46.10 | -51.95 | 114.69 | 0.8256 | 755.0 | 737.5 | |
| 13 | -12 | 12 | -12 | -19.48 | 45.45 | -52.60 | 115.97 | 0.8352 | 639.2 | 999999 | |
| 0 | 2 | 0 | 2 | -22.32 | 43.69 | -54.36 | 118.56 | 0.8580 | 482.0 | 462.0 | |
| 0 | 4 | 0 | 4 | -21.95 | 43.31 | -54.74 | 118.01 | 0.8599 | 731.0 | 630.7 | |
| 0 | 5 | 0 | 4 | -20.06 | 44.11 | -53.94 | 116.17 | 0.8482 | 461.0 | 346.6 | |
| 2 | 65 | 2 | 63 | -21.11 | 42.82 | -55.24 | 116.92 | 0.8615 | 610.5 | 178.5 | |
| 5 | -19 | 5 | -19 | -21.14 | 42.20 | -55.86 | 116.75 | 0.8665 | 233.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
