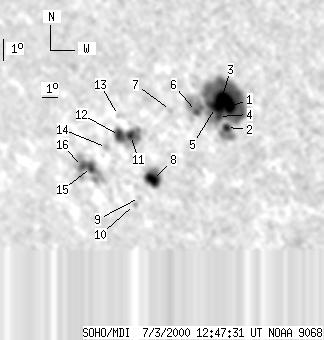

SOHO MDI 2000-07-03 12:47:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103 | 563 | 77 | 420 | -19.06 | 49.06 | -43.70 | 119.24 | 0.7486 | -492.3 | -157.5 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-03 12:47:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33 | 375 | 23 | 266 | -18.10 | 52.12 | -40.64 | 119.54 | 0.7139 | -1404.7 | -420.9 | |
| 4 | -1 | 3 | -1 | -19.01 | 51.69 | -41.07 | 120.46 | 0.7230 | -780.0 | 999999 | |
| -1 | -1 | -1 | -1 | -17.78 | 51.77 | -40.99 | 118.94 | 0.7160 | 999999 | 999999 | |
| 4 | -1 | 3 | -1 | -18.56 | 51.38 | -41.38 | 119.72 | 0.7239 | -627.0 | 999999 | |
| 16 | -1 | 12 | -1 | -18.18 | 51.32 | -41.44 | 119.21 | 0.7227 | -768.8 | 999999 | |
| 1 | -1 | 1 | -1 | -18.39 | 50.19 | -42.57 | 118.90 | 0.7356 | -465.2 | 999999 | |
| 0 | 3 | 0 | 2 | -18.41 | 48.68 | -44.07 | 118.18 | 0.7511 | 538.0 | 450.4 | |
| 16 | 42 | 12 | 33 | -21.46 | 46.48 | -46.28 | 120.83 | 0.7855 | -669.6 | -418.8 | |
| 0 | 3 | 0 | 3 | -22.29 | 45.31 | -47.45 | 121.27 | 0.7997 | 316.0 | 340.6 | |
| 0 | 3 | 0 | 3 | -22.62 | 44.84 | -47.92 | 121.44 | 0.8052 | 203.0 | 433.8 | |
| 6 | 63 | 5 | 50 | -19.59 | 45.87 | -46.89 | 118.34 | 0.7837 | 973.8 | 631.4 | |
| 12 | -11 | 9 | -11 | -19.62 | 45.17 | -47.59 | 118.08 | 0.7905 | 498.3 | 999999 | |
| 0 | 3 | 0 | 2 | -18.76 | 45.44 | -47.32 | 117.16 | 0.7846 | 519.0 | 529.3 | |
| 0 | 4 | 0 | 4 | -20.18 | 44.12 | -48.64 | 118.30 | 0.8023 | 648.0 | 526.6 | |
| 6 | 67 | 5 | 57 | -21.11 | 42.73 | -50.03 | 118.81 | 0.8181 | 804.7 | 380.4 | |
| 5 | -15 | 4 | -15 | -21.09 | 42.14 | -50.62 | 118.56 | 0.8233 | 509.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
