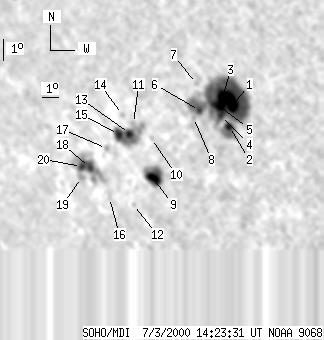

SOHO MDI 2000-07-03 14:23:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 95 | 593 | 70 | 441 | -19.14 | 48.77 | -43.10 | 119.65 | 0.7428 | -478.6 | -136.9 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-03 14:23:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33 | 371 | 23 | 260 | -18.06 | 52.18 | -39.69 | 120.01 | 0.7036 | -1399.5 | -447.6 | |
| 5 | -1 | 3 | -1 | -19.01 | 51.75 | -40.13 | 120.99 | 0.7131 | -816.9 | 999999 | |
| -1 | -1 | -1 | -1 | -17.78 | 51.71 | -40.16 | 119.39 | 0.7072 | 999999 | 999999 | |
| 3 | -1 | 2 | -1 | -18.56 | 51.39 | -40.49 | 120.21 | 0.7146 | -633.6 | 999999 | |
| 10 | -1 | 7 | -1 | -18.17 | 51.44 | -40.44 | 119.75 | 0.7121 | -810.8 | 999999 | |
| 3 | -1 | 2 | -1 | -18.39 | 50.27 | -41.61 | 119.39 | 0.7255 | -546.6 | 999999 | |
| 0 | 3 | 0 | 2 | -17.24 | 50.43 | -41.45 | 118.01 | 0.7183 | -428.0 | -373.8 | |
| 0 | 3 | 0 | 2 | -18.70 | 49.84 | -42.04 | 119.56 | 0.7315 | -262.0 | -257.8 | |
| 13 | 48 | 10 | 37 | -21.46 | 46.52 | -45.35 | 121.27 | 0.7769 | -702.9 | -380.3 | |
| 0 | 2 | 0 | 2 | -19.71 | 47.07 | -44.81 | 119.44 | 0.7641 | 587.0 | 487.5 | |
| 0 | 5 | 0 | 4 | -19.11 | 46.20 | -45.67 | 118.31 | 0.7700 | 836.0 | 817.3 | |
| 0 | 2 | 0 | 2 | -22.67 | 44.77 | -47.11 | 121.86 | 0.7982 | 608.0 | 459.9 | |
| 5 | 70 | 4 | 55 | -19.55 | 45.80 | -46.07 | 118.66 | 0.7757 | 1040.5 | 680.3 | |
| 0 | 3 | 0 | 3 | -18.75 | 45.67 | -46.21 | 117.63 | 0.7738 | 839.0 | 685.6 | |
| 9 | -13 | 7 | -13 | -19.62 | 45.10 | -46.78 | 118.44 | 0.7828 | 438.1 | 999999 | |
| 0 | 4 | 0 | 4 | -22.42 | 43.34 | -48.53 | 120.95 | 0.8099 | 562.0 | 511.5 | |
| 0 | 4 | 0 | 3 | -20.27 | 44.10 | -47.78 | 118.77 | 0.7947 | 588.0 | 536.2 | |
| 14 | 69 | 12 | 59 | -21.15 | 42.62 | -49.25 | 119.18 | 0.8115 | 624.8 | 416.6 | |
| 0 | 9 | 0 | 8 | -21.62 | 41.88 | -50.00 | 119.42 | 0.8197 | -266.0 | -193.2 | |
| -18 | -18 | -18 | -18 | -21.13 | 42.11 | -49.77 | 118.95 | 0.8160 | 999999 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
