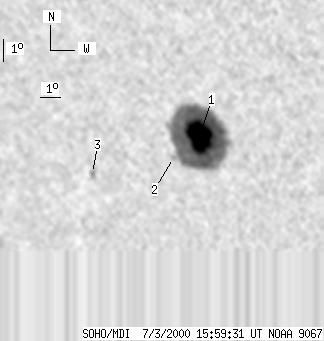

SOHO MDI 2000-07-03 15:59:31 UT
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76 | 480 | 46 | 290 | -19.75 | 64.24 | -26.75 | 132.27 | 0.5745 | -1650.4 | -520.8 | |
|
previous
or next observation for the same group /
back to the solar disc SOHO MDI 2000-07-03 15:59:31 UT |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76 | 471 | 46 | 284 | -19.72 | 64.33 | -26.66 | 132.31 | 0.5733 | -1667.0 | -541.0 | |
| 0 | 3 | 0 | 2 | -20.67 | 62.91 | -28.08 | 132.18 | 0.5965 | -392.0 | -209.9 | |
| 0 | 6 | 0 | 4 | -21.49 | 58.75 | -32.25 | 129.56 | 0.6463 | 900.0 | 755.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
